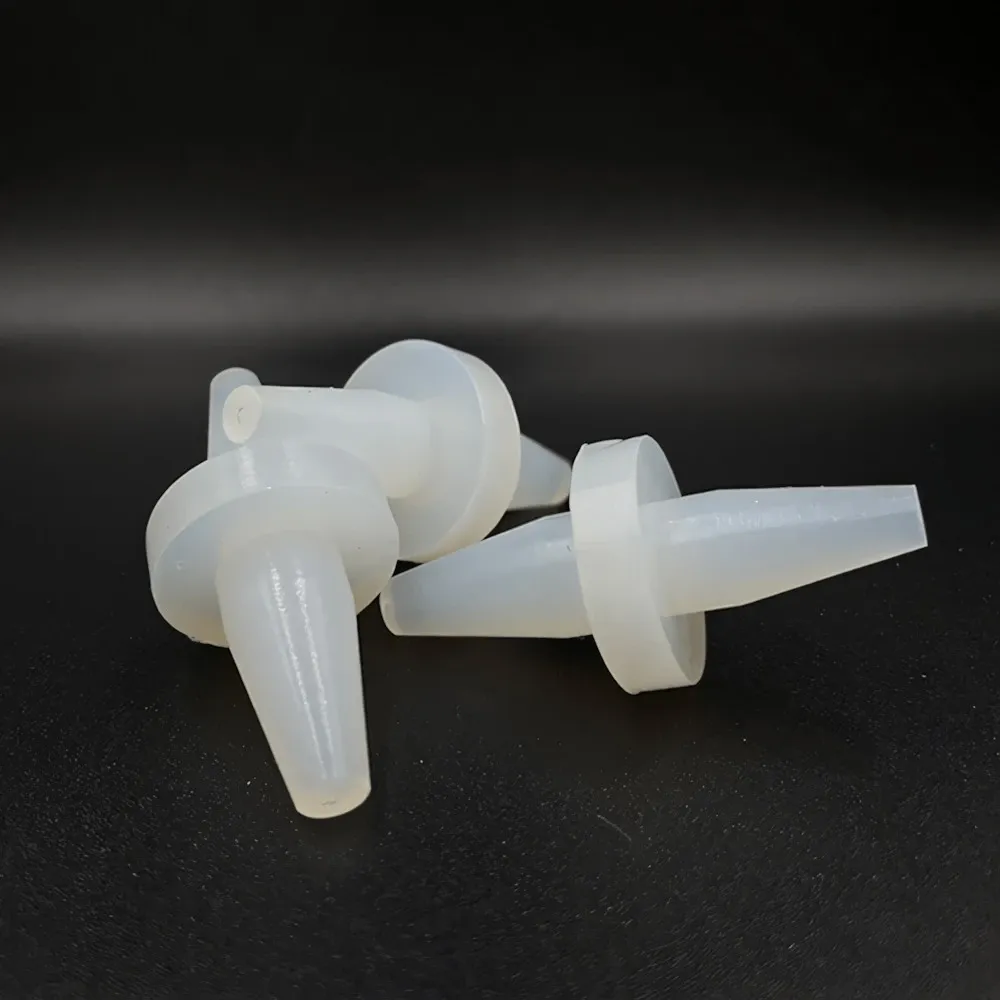

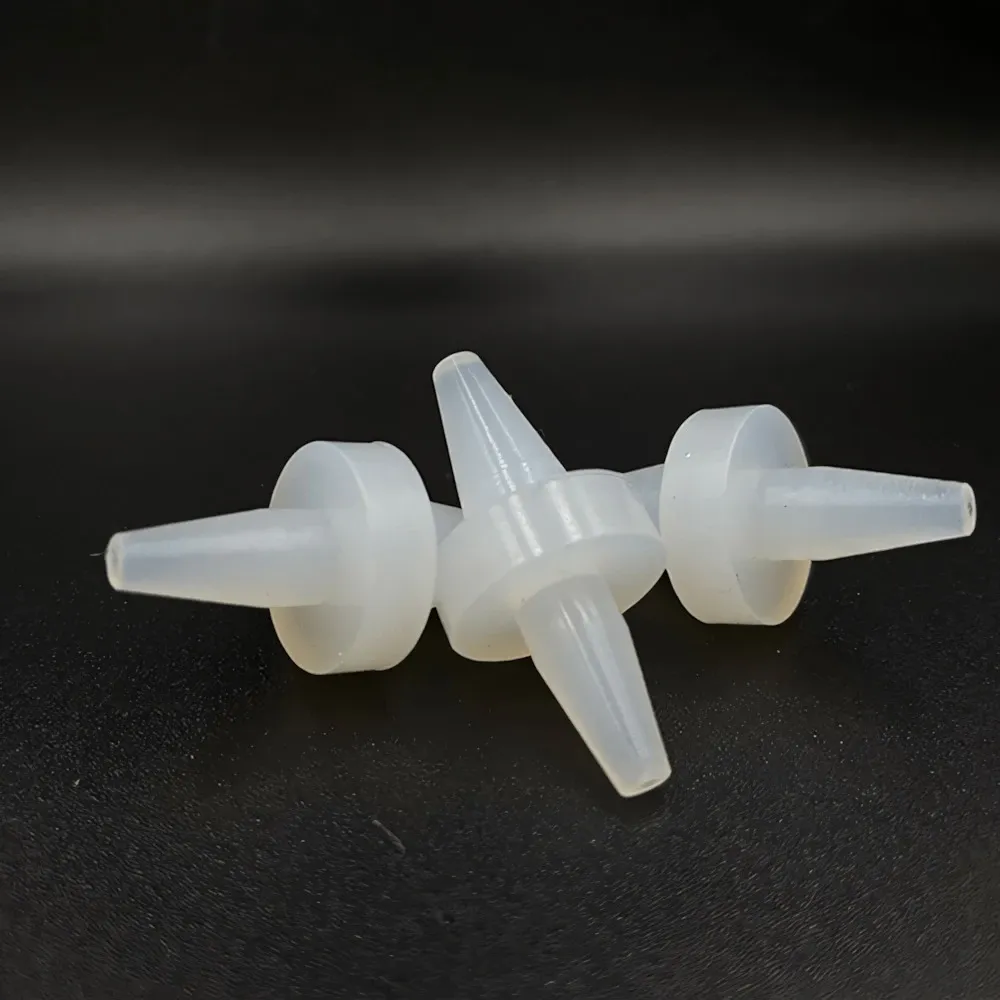

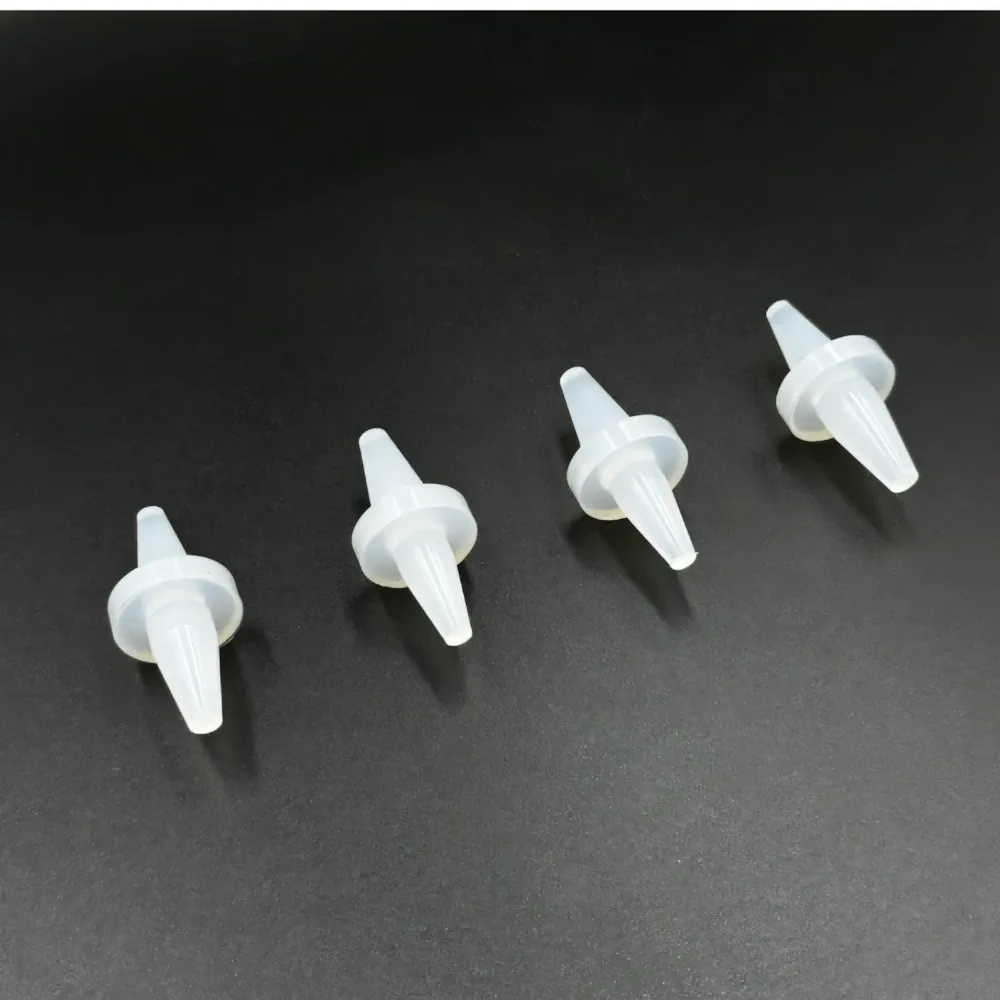

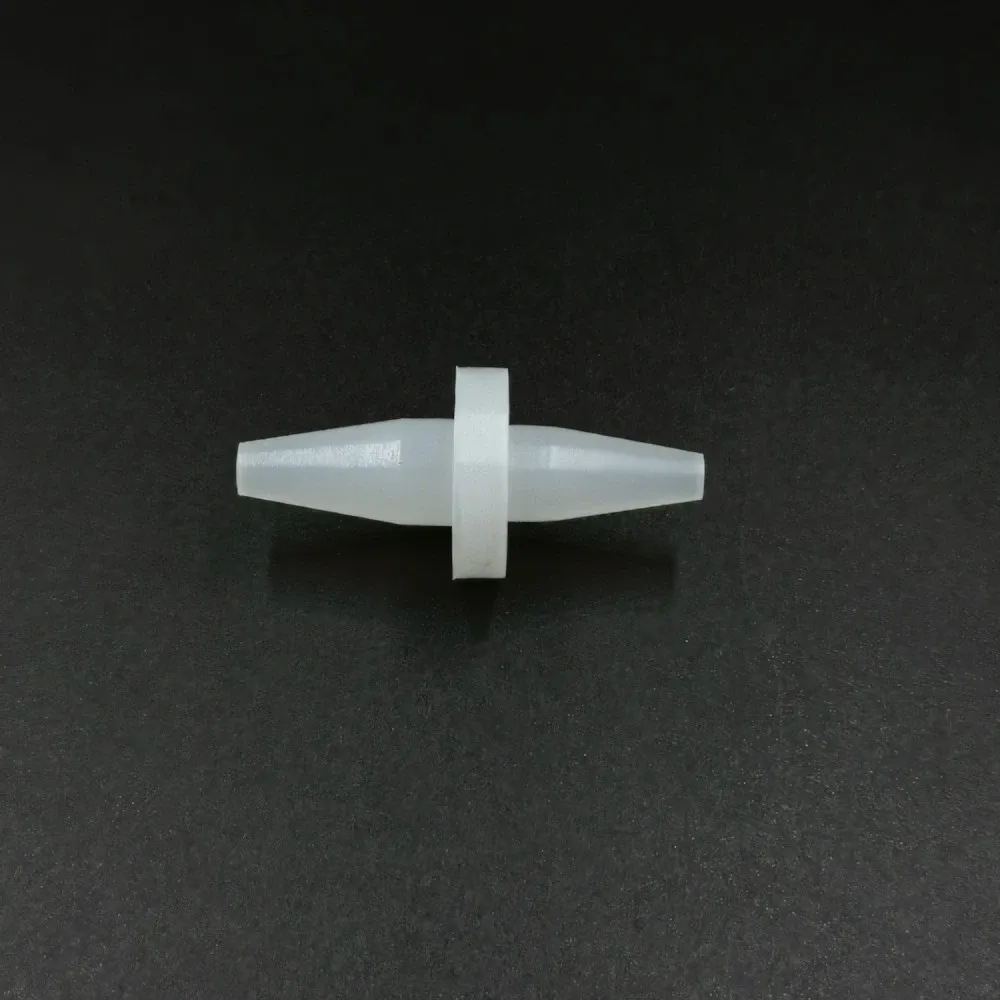

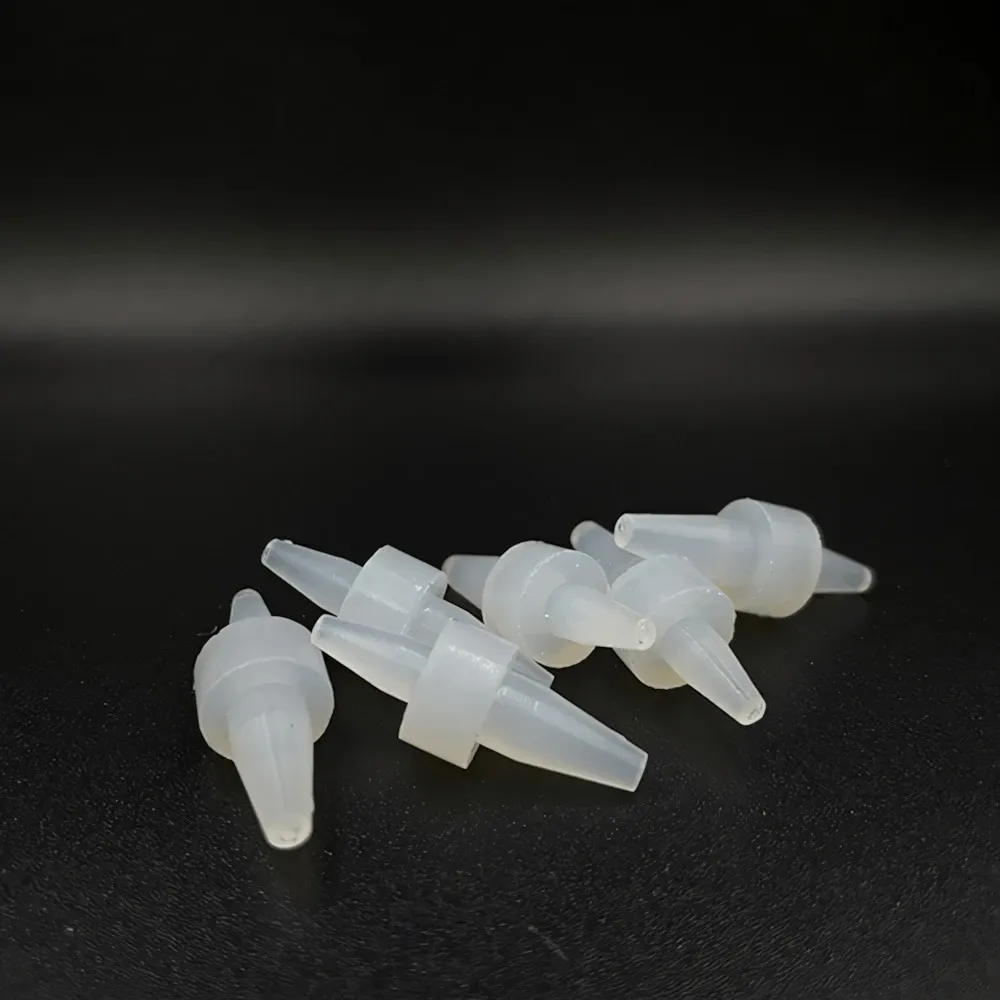

Double tapered plugs usable in both directions.
Shore A
55-55
Temp. Range
-90°C ~ 315°C
Post Cure
Yes
Chemical Res.
Yes
Acid Res.
Yes
Technical information and usage areas
All our products are manufactured in our facility with special recipes and quality certifications (ISO 9001:2015, RoHS, REACH).
Twin tapered plugs close various holes such as pipes, shafts, and internal threads. Additionally, they are preferred for the advantage of being used in both directions when it is necessary to create a grounding area by utilizing the flange at the same time.
They are masking plugs with high heat and acid resistance.
Material: Manufactured in our factory with our own formula silicone compounds and special activators in varying hardness (50-80 ShoreA) depending on diameters.
Post Cure: After production, it is subjected to final curing (postcure) process for 4 hours in our special ovens.

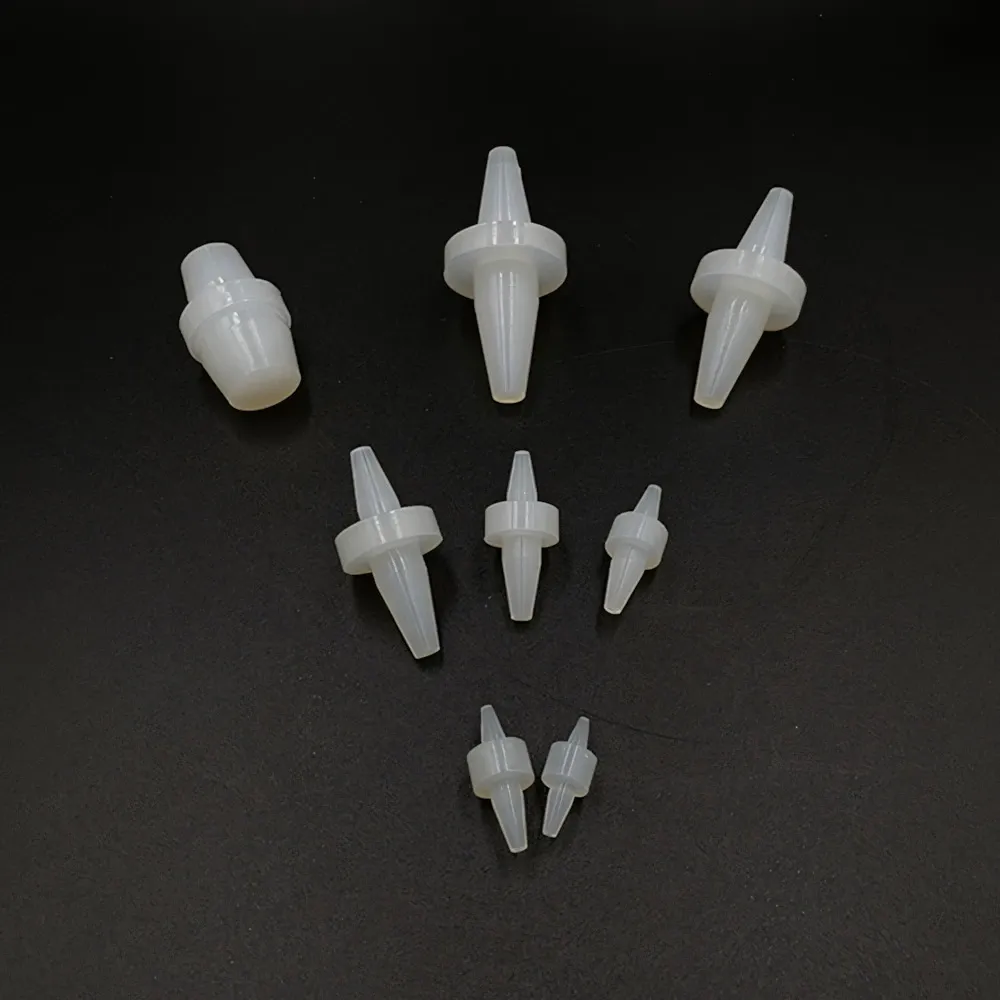

8 variants available

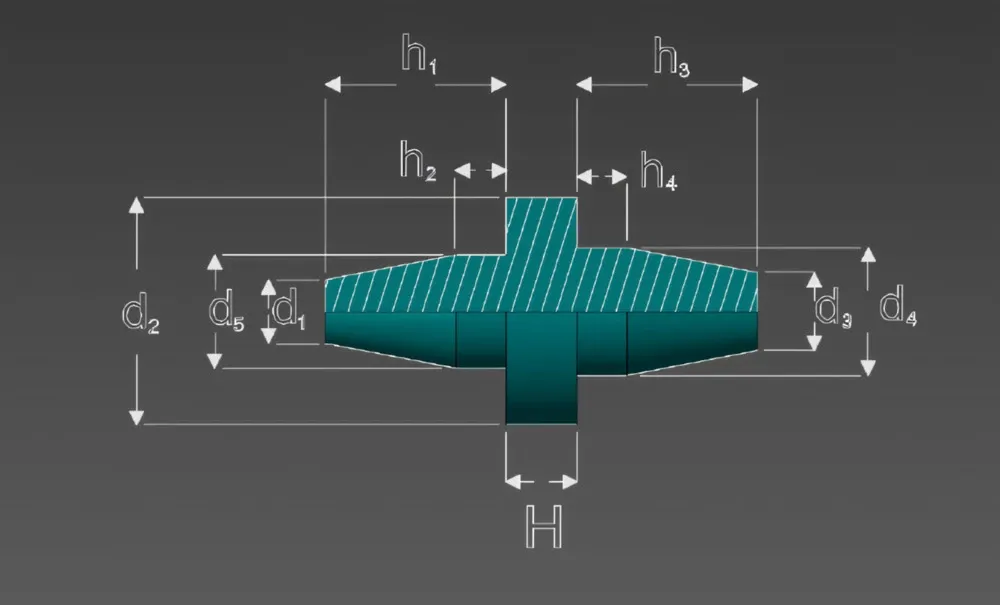

| SKU | d1 (mm) | d2 (mm) | d3 (mm) | d4 (mm) | d5 (mm) | h1 (mm) | h2 (mm) | h3 (mm) | h4 (mm) | H (mm) | Shore A | Qty/Pack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UW-M3 | 1.4 | 7 | 1.9 | 3.7 | 2.8 | 5.8 | 2 | 7.4 | 2 | 5 | 55 | 1000 |
| UW-M4 | 1.8 | 9 | 2.4 | 4.7 | 3.6 | 7.2 | 2 | 9.4 | 2.4 | 5 | 55 | 1000 |
| UW-M5 | 2.3 | 9.5 | 2.8 | 5.7 | 4.5 | 9 | 2.3 | 11.4 | 2.8 | 5 | 55 | 1000 |
| UW-M6 | 2.6 | 12.5 | 3.4 | 6.7 | 5.3 | 10.6 | 2.6 | 13.4 | 3.4 | 5 | 55 | 500 |
| UW-M8 | 3.6 | 17 | 4.3 | 8.7 | 7.1 | 14.2 | 3.6 | 17.4 | 4.3 | 5 | 55 | 250 |
| UW-M10 | 4.8 | 21 | 5.4 | 10.7 | 9.6 | 19.2 | 4.8 | 21.4 | 5.4 | 5 | 55 | 100 |
| UW-M12 | 5.5 | 24 | 6.4 | 12.7 | 10.9 | 21.8 | 5.5 | 25.4 | 6.4 | 5 | 55 | 100 |
| UW-551 | 11.5 | 20 | 14 | 17.5 | 14 | 12.7 | 3.5 | 12.7 | 3.5 | 5 | 55 | 50 |
