Tapered plugs with pull tabs for easy removal.
Shore A
50-60
Temp. Range
-90°C ~ 315°C
Post Cure
Yes
Chemical Res.
Yes
Acid Res.
Yes
Technical information and usage areas
All our products are manufactured in our facility with special recipes and quality certifications (ISO 9001:2015, RoHS, REACH).

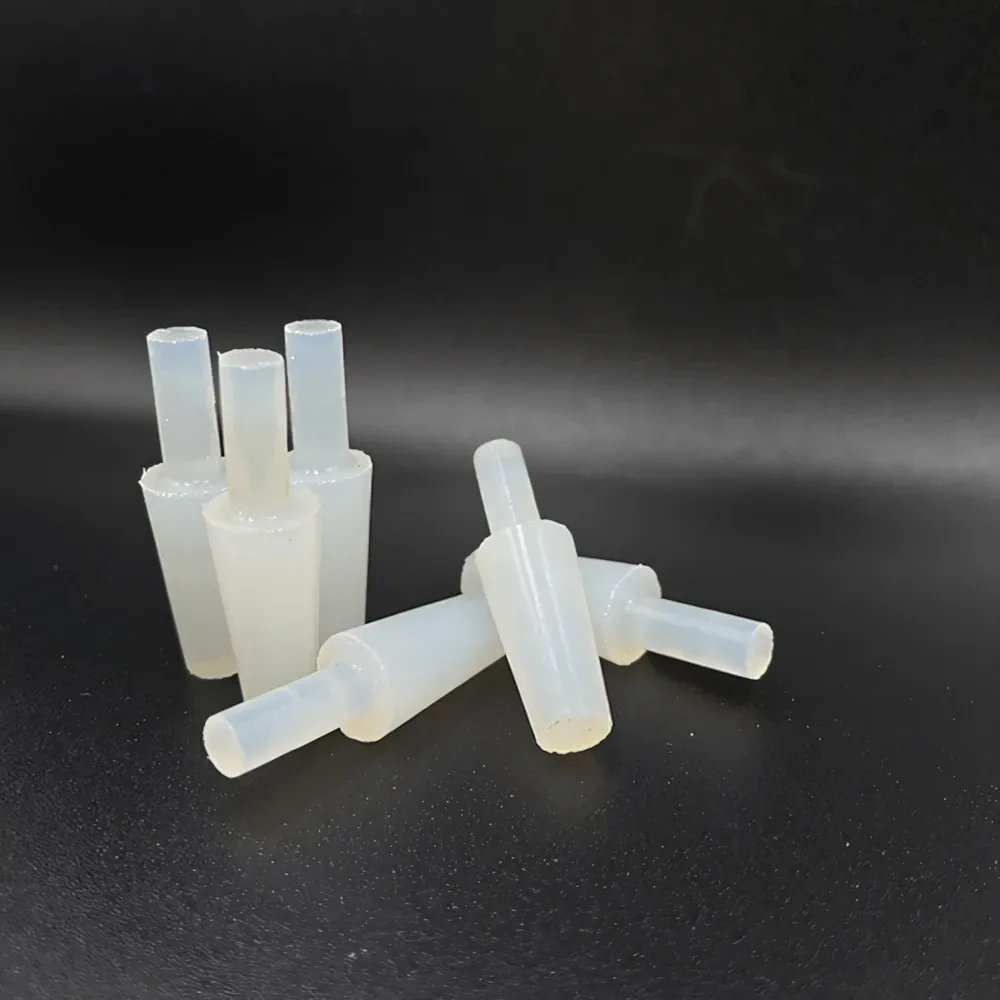

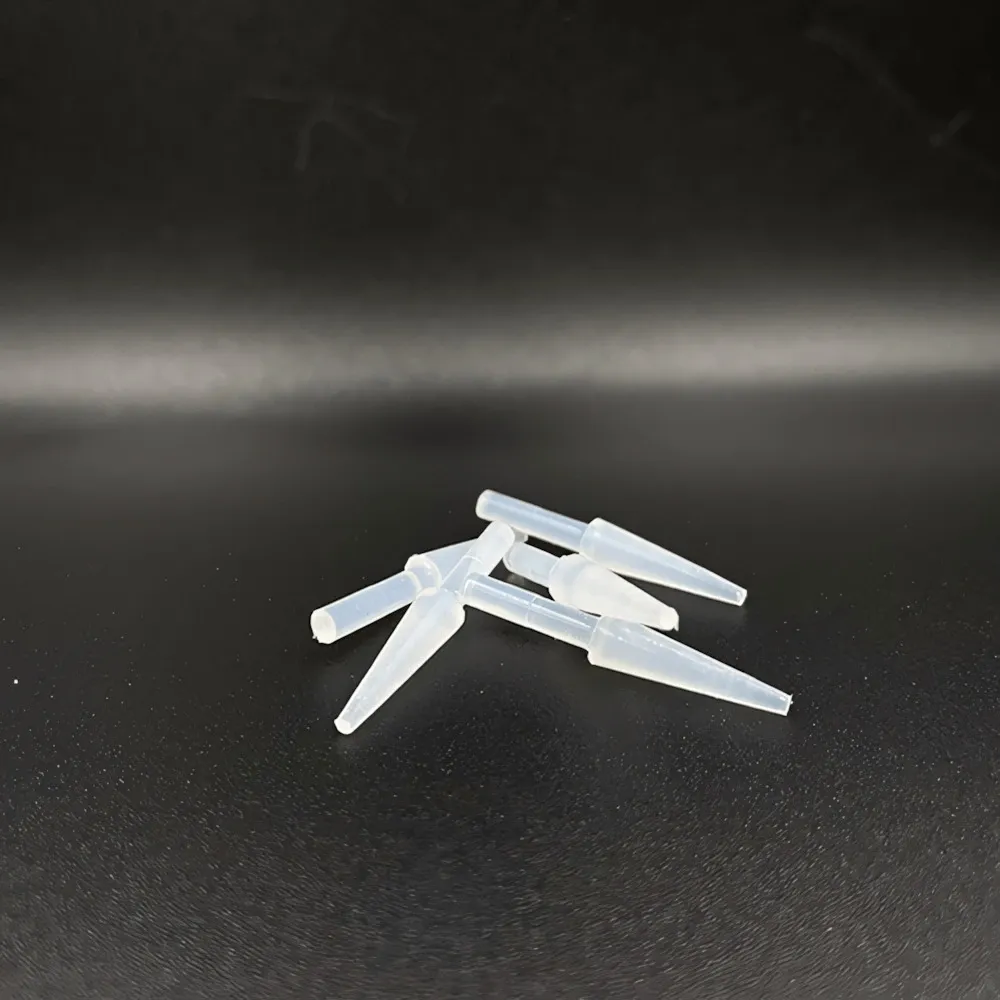

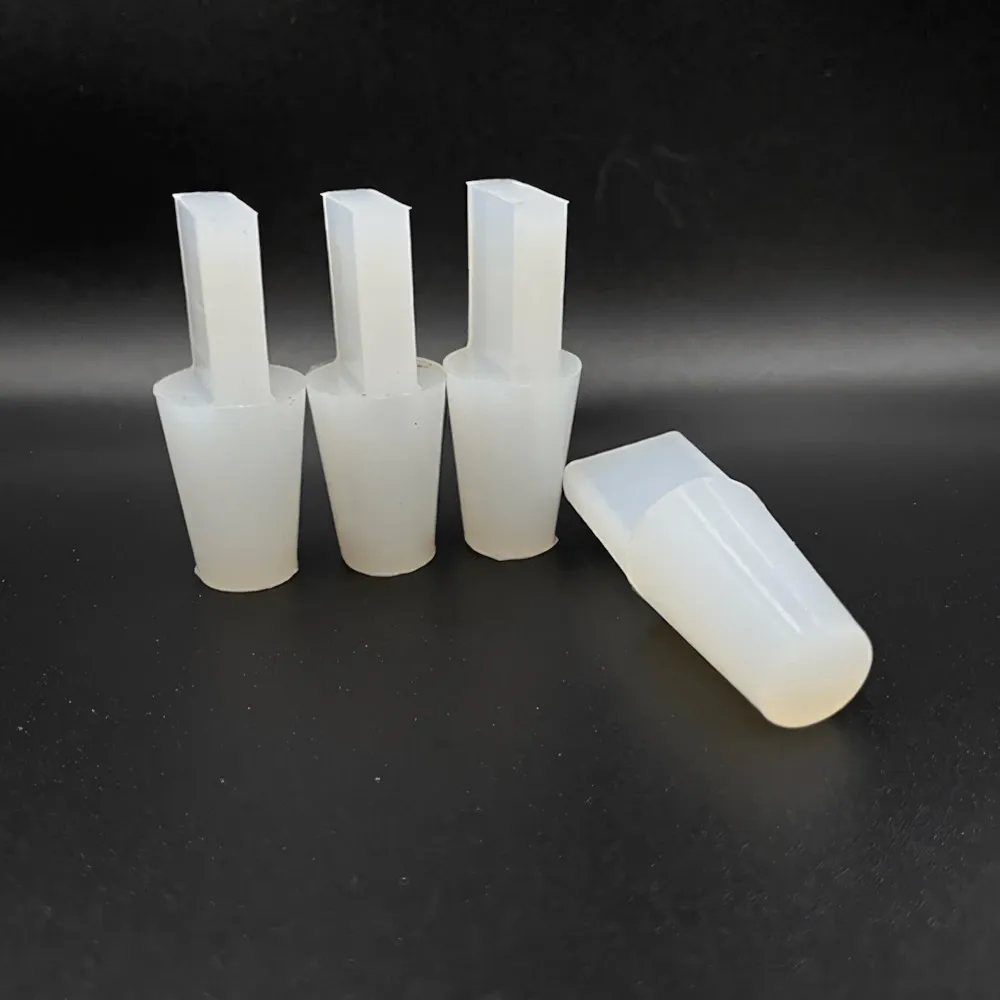

Pull plugs with handle are designed in a conical shape to fit pipes, shafts, holes and internal threads. Pull plugs with handle have grip handles on top, providing usage up to the widest conical diameter.

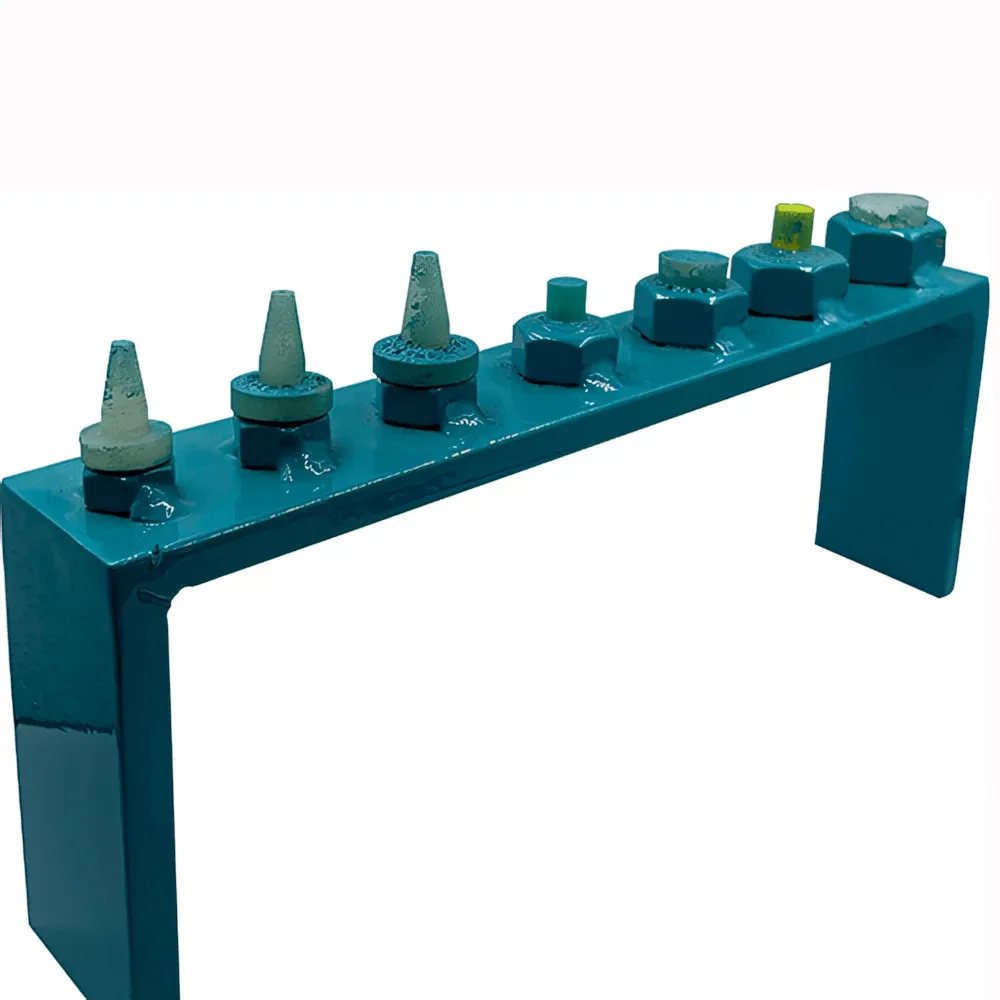

These types of plugs are easily removed after masking, reducing masking labor and time. Pull plugs with handle are masking plugs with high heat and acid resistance.
Material: Manufactured in our factory with our own formula silicone compounds and special activators in varying hardness (50-80 ShoreA) depending on diameters.
Post Cure: After production, it is subjected to final curing (postcure) process for 4 hours in our special ovens.
12 variants available

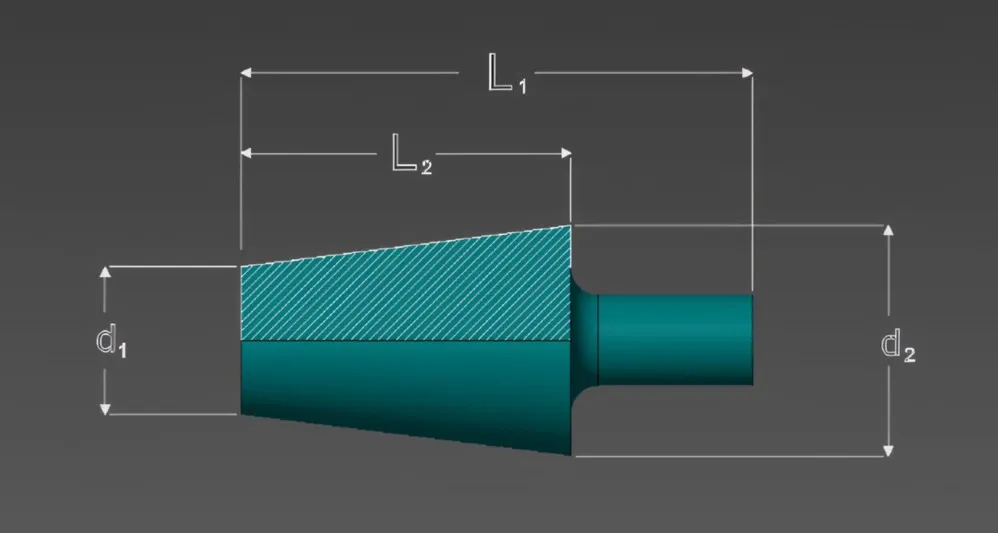

| SKU | d1 (mm) | d2 (mm) | L2 (mm) | L1 (mm) | Ø | Shore A | Qty/Pack |
|---|---|---|---|---|---|---|---|
| TKT 187 | 1.6 | 4.78 | 15.88 | 28.7 | M2, M3, M4 | 60 | 1000 |
| TKT 250 | 3.18 | 6.35 | 19.05 | 31.75 | M4, M5 | 55 | 1000 |
| TKT 343 | 4.75 | 8.71 | 15.88 | 28.7 | M5, M6 | 55 | 500 |
| TKT 375 | 6.35 | 9.53 | 19.05 | 31.75 | M8 | 55 | 500 |
| TKT 469 | 8.74 | 11.91 | 15.88 | 38.1 | M10 | 50 | 250 |
| TKT 510 | 5 | 10 | 25.4 | 38 | M8, M10 | 50 | 1000 |
| TKT 594 | 10.31 | 15.09 | 25.4 | 44.45 | M12, M14 | 50 | 250 |
| TKT 625 | 11.13 | 15.88 | 22.23 | 41.28 | M13, M14 | 50 | 250 |
| TKT 656 | 12.7 | 16.66 | 25.4 | 44.45 | M15, M16 | 50 | 250 |
| TKT 781 | 15.88 | 19.84 | 25.4 | 44.45 | M18 | 50 | 100 |
| TKT 938 | 18.26 | 23.83 | 25.4 | 44.45 | M20, M22 | 50 | 100 |
| TKT 1000 | 19.05 | 25.4 | 25.4 | 44.45 | M24 | 50 | 100 |
