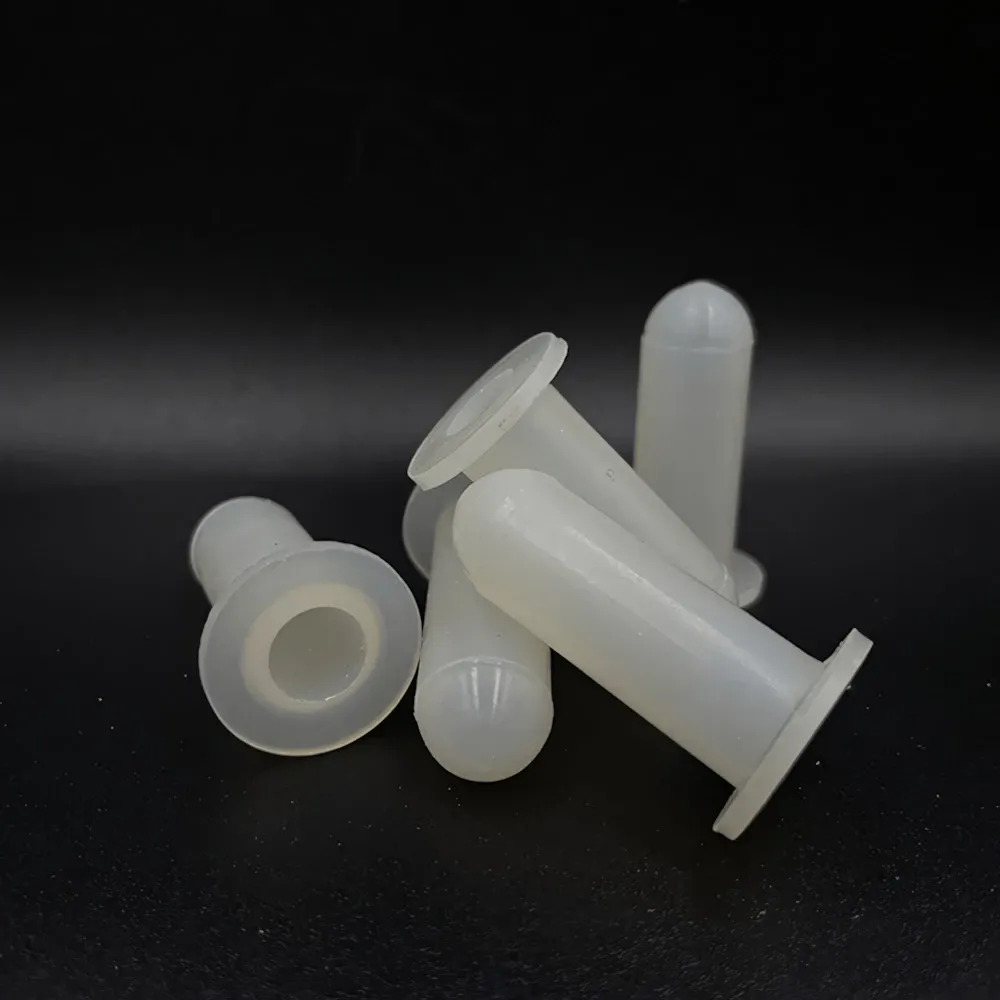

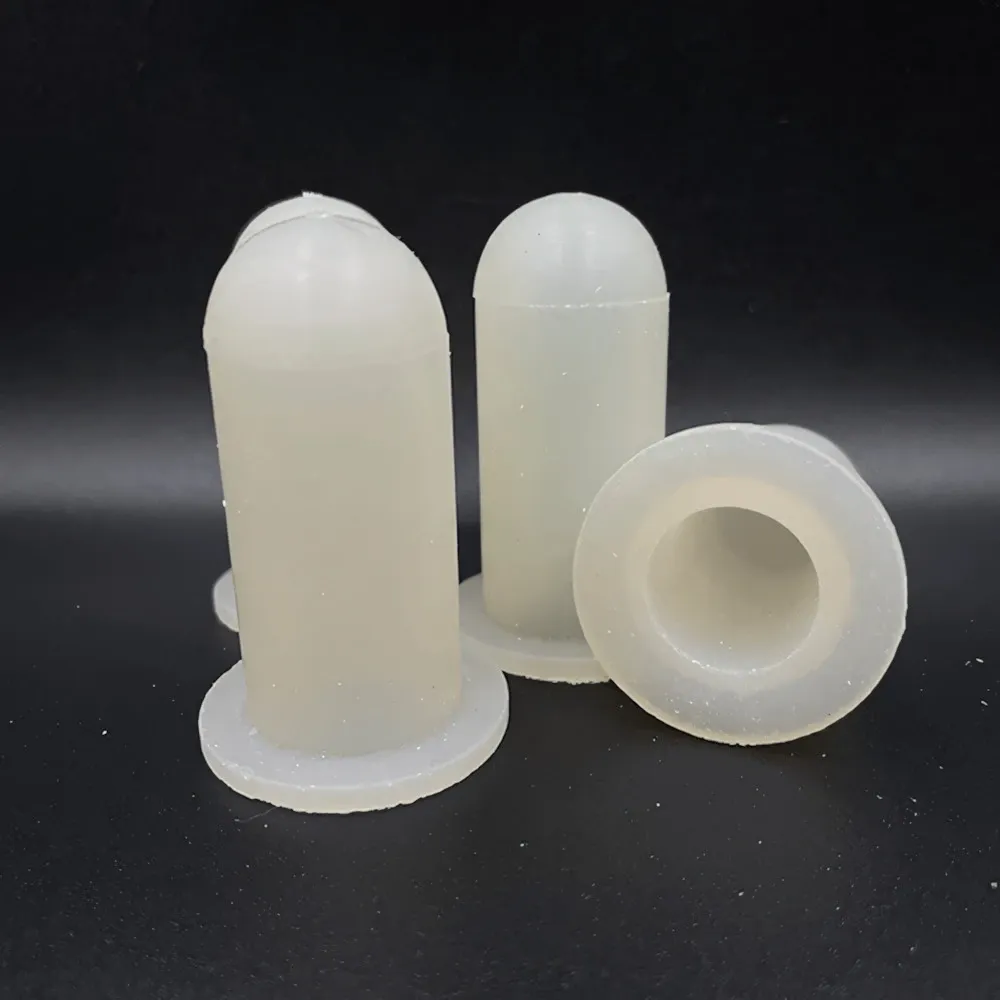

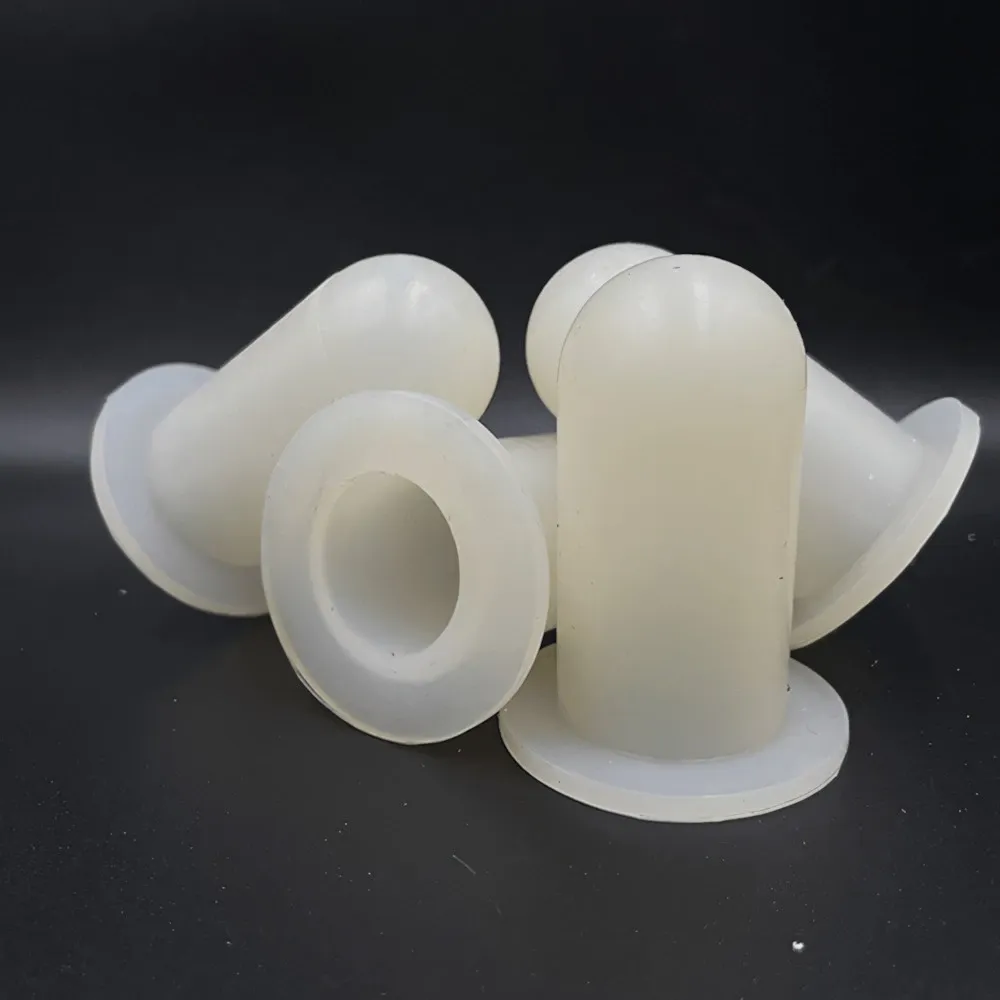

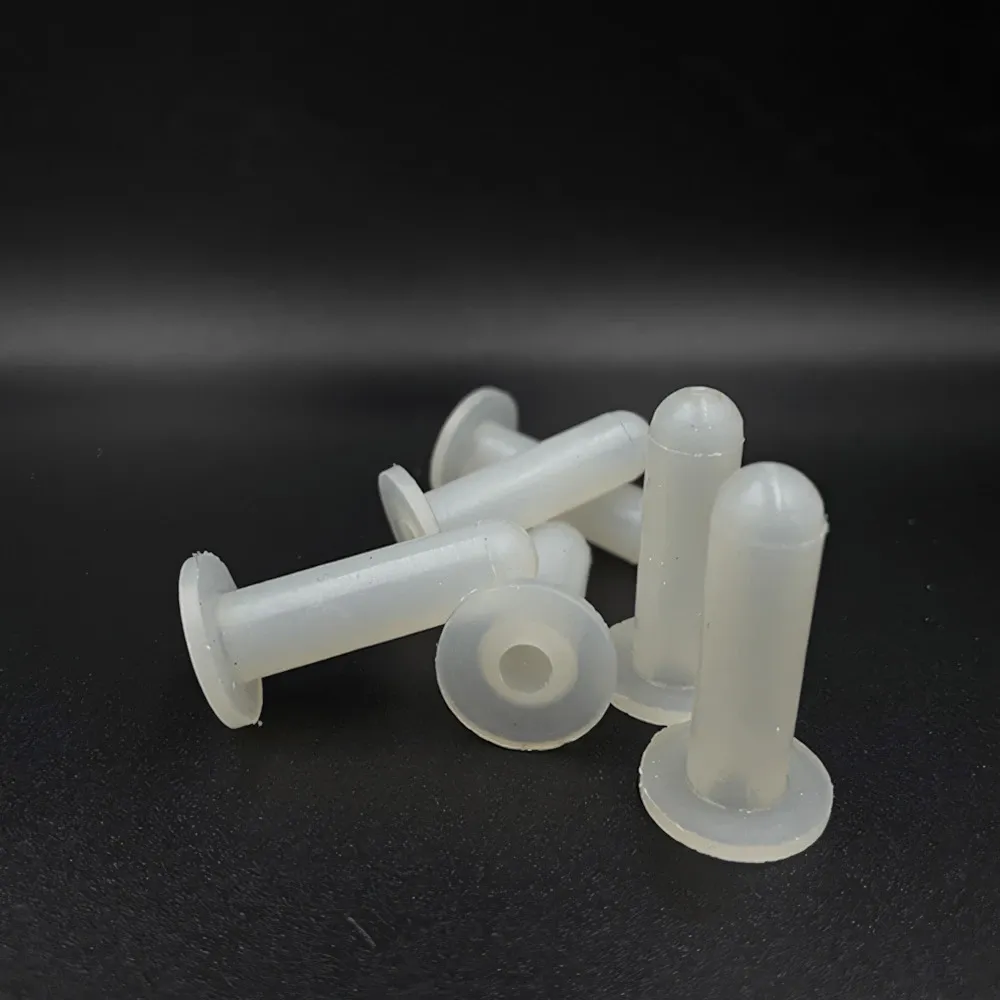

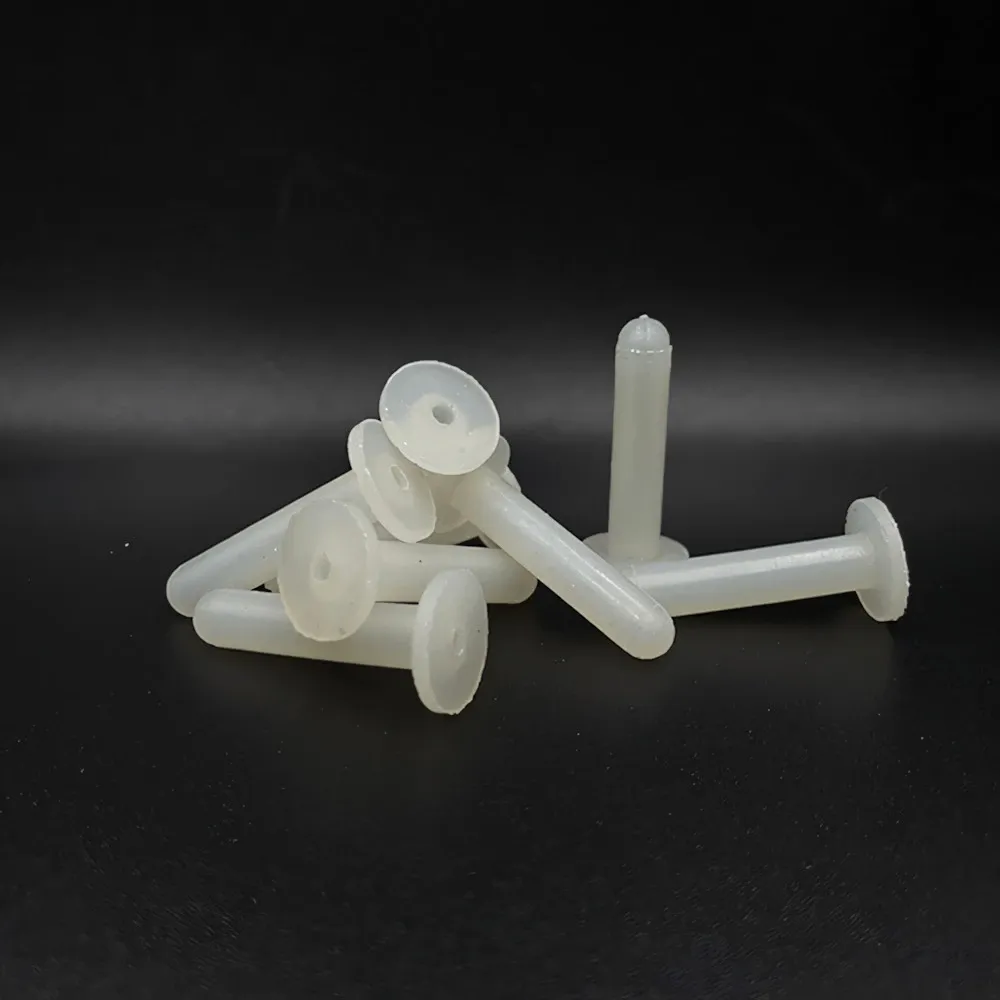

Flanged caps leaving grounding area while masking threaded and stud areas.
Shore A
55-55
Temp. Range
-90°C ~ 315°C
Post Cure
Yes
Chemical Res.
Yes
Acid Res.
Yes
Technical information and usage areas
All our products are manufactured in our facility with special recipes and quality certifications (ISO 9001:2015, RoHS, REACH).
Flanged Cap is ideal for parts where we want to leave grounding area around while masking gears and stud areas.
Flanged caps have high heat and acid resistance in powder coating, electrolysis and anodizing.
Material: Manufactured in our factory with our own formula silicone compounds and special activators in varying hardness (50-80 ShoreA).
Post Cure: After production, it is subjected to final curing (postcure) process for 4 hours in our special ovens.
16 variants available

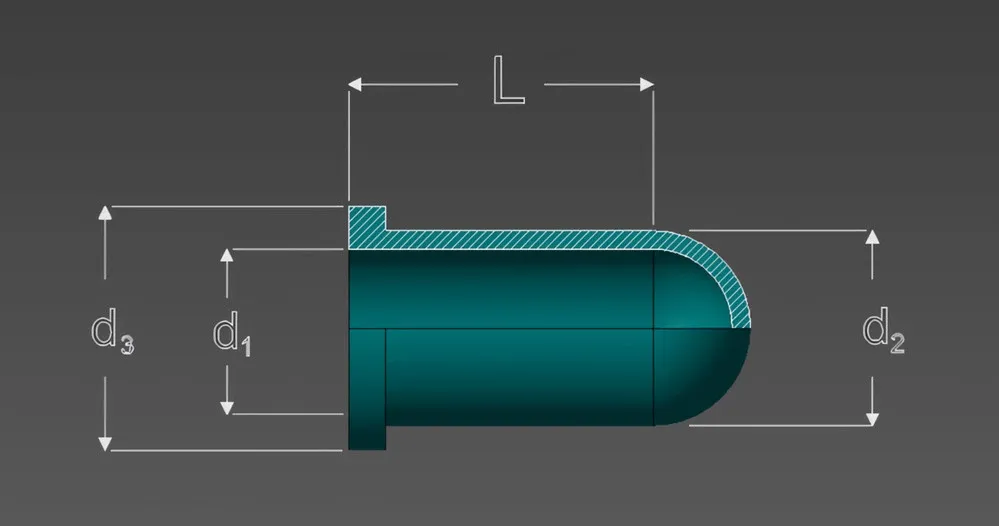

| SKU | d1 (mm) | d2 (mm) | d3 (mm) | L (mm) | Shore A | Qty/Pack |
|---|---|---|---|---|---|---|
| SWC 100 - 500 | 2.54 | 5.72 | 12.7 | 25.4 | 55 | 500 |
| SWC 146 - 472 | 3.71 | 6.6 | 11.99 | 25.4 | 55 | 500 |
| SWC 156 - 500 | 3.96 | 8 | 12.7 | 25.4 | 55 | 500 |
| SWC 172 - 500 | 4.37 | 9.7 | 12.7 | 25.4 | 55 | 500 |
| SWC 180 - 600 | 4.57 | 8 | 15.24 | 25.4 | 55 | 500 |
| SWC 220 - 590 | 5.59 | 9.09 | 14.99 | 25.4 | 55 | 250 |
| SWC 220 - 787 | 5.59 | 8.71 | 14.99 | 25.4 | 55 | 250 |
| SWC 240 - 500 | 6.1 | 9.09 | 12.7 | 25.4 | 55 | 250 |
| SWC 295 - 500 | 7.49 | 10.49 | 12.7 | 25.4 | 55 | 250 |
| SWC 295 - 700 | 7.49 | 10.49 | 17.78 | 25.4 | 55 | 250 |
| SWC 300 - 675 | 7.62 | 10.59 | 17.15 | 25.4 | 55 | 250 |
| SWC 375 - 825 | 9.53 | 13 | 20.96 | 38.1 | 55 | 250 |
| SWC 460 - 700 | 11.68 | 14.5 | 17.78 | 25.4 | 55 | 250 |
| SWC 500 - 1000 | 12.7 | 15.39 | 25.4 | 25.4 | 55 | 100 |
| SWC 615 - 1180 | 15.62 | 20.7 | 29.97 | 38.1 | 55 | 100 |
| SWC 780 - 1475 | 19.81 | 24.69 | 37.47 | 25.4 | 55 | 100 |
