Hollow design with handle for perfect masking in wash baths.
Shore A
60-60
Temp. Range
-90°C ~ 315°C
Post Cure
Yes
Chemical Res.
Yes
Acid Res.
Yes
Technical information and usage areas
All our products are manufactured in our facility with special recipes and quality certifications (ISO 9001:2015, RoHS, REACH).

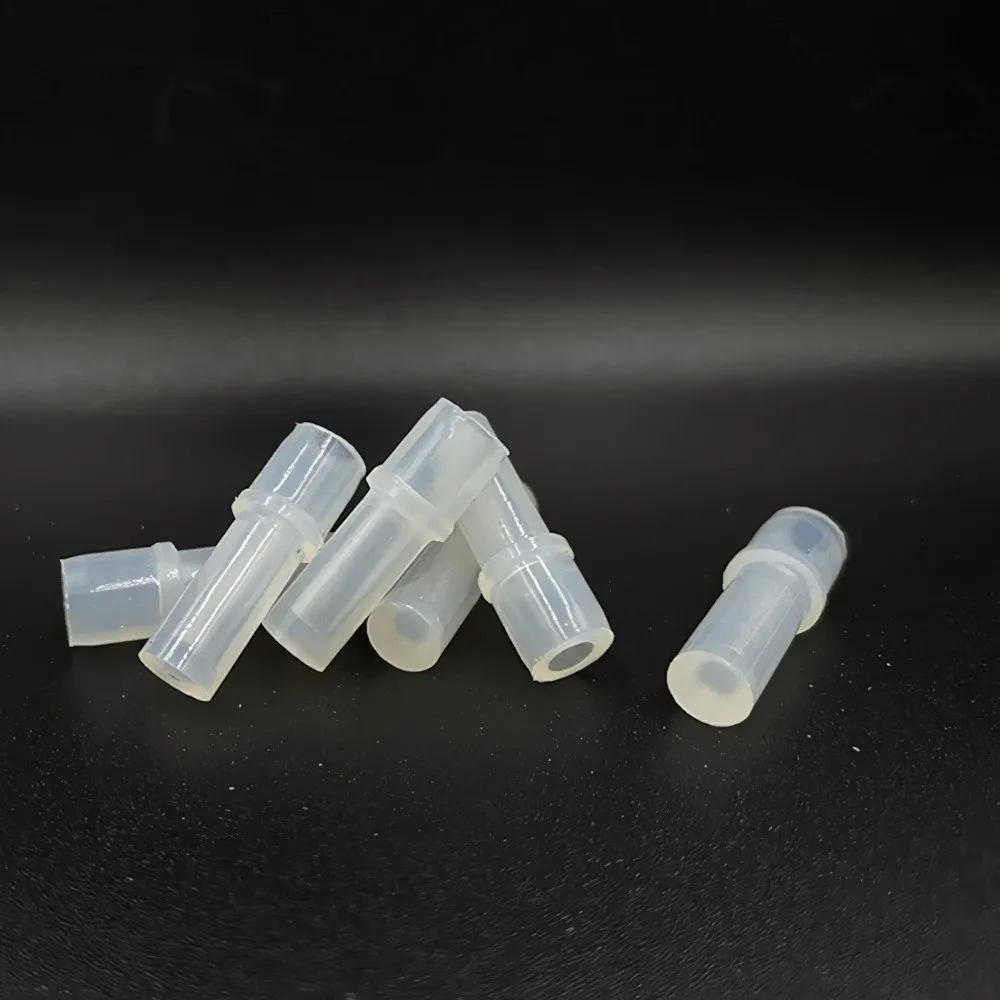

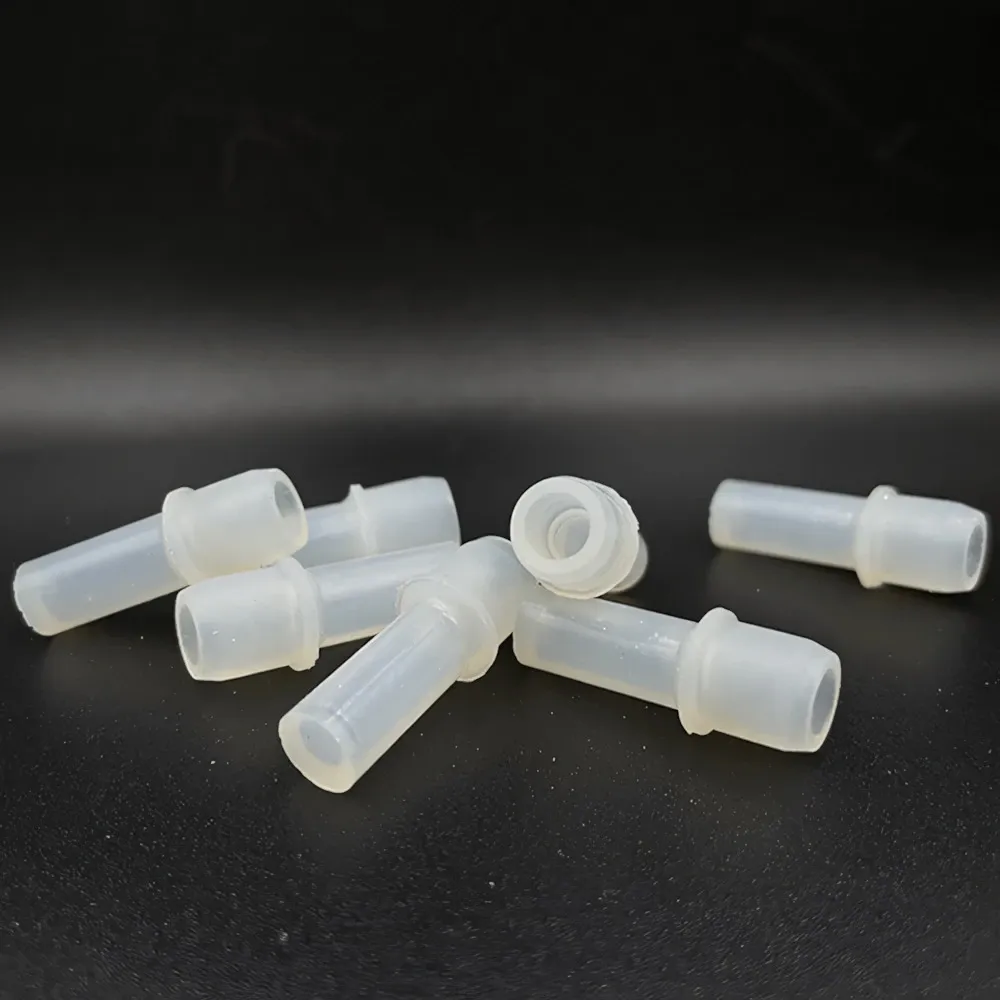

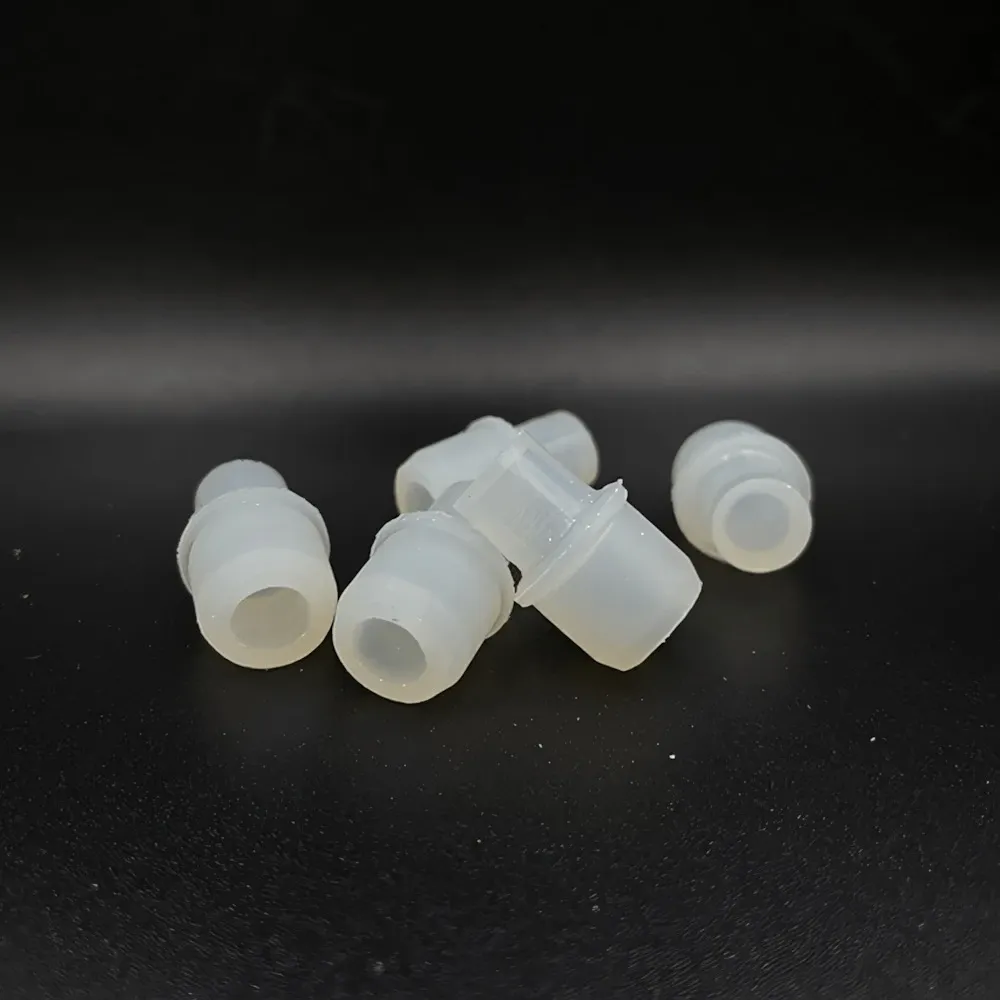

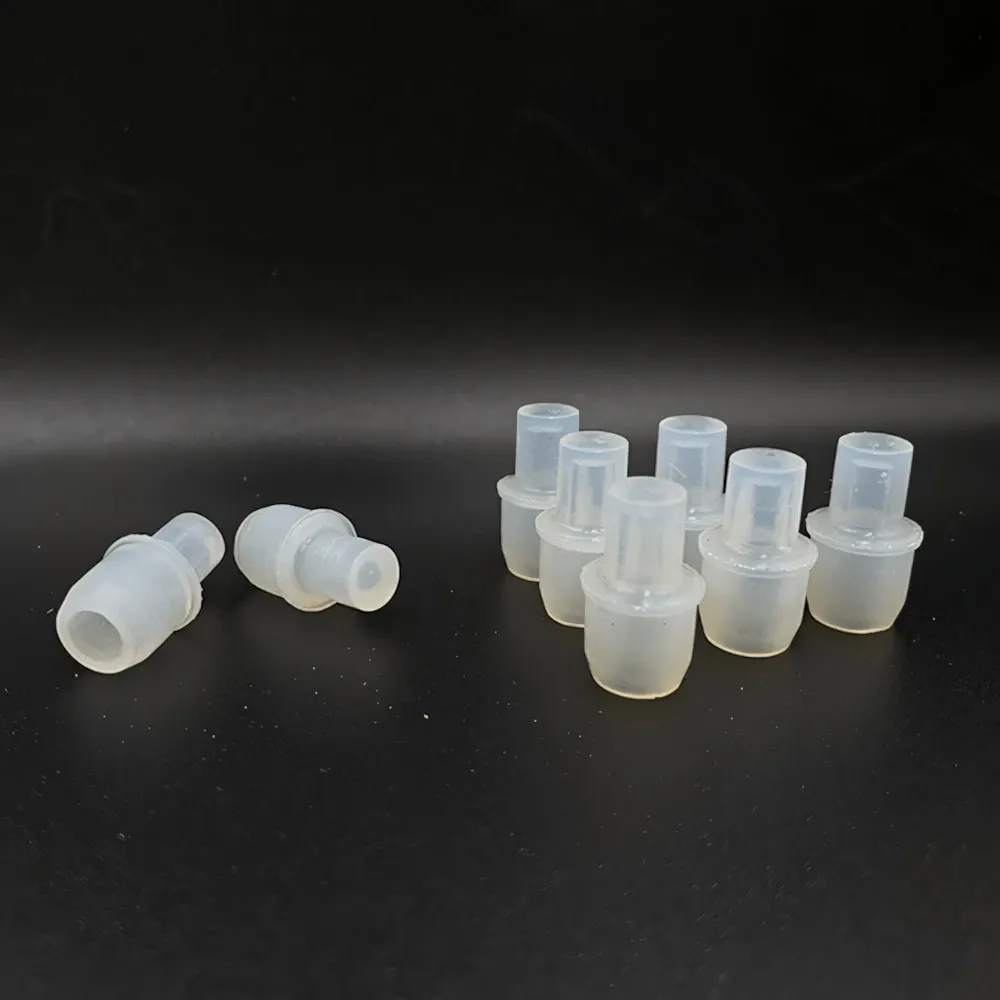

Pull-Through Plugs are hollow with handles, with tapered ends, very easy and fast to use, with flange part on top providing sealing, making perfect masking in washing baths and electroplating.
Pull-through plugs are masking plugs with high heat and acid resistance.
Material: Manufactured in our factory with our own formula silicone compounds and special activators in varying hardness (50-80 ShoreA) depending on diameters.
Post Cure: After production, it is subjected to final curing (postcure) process for 4 hours in our special ovens.
16 variants available

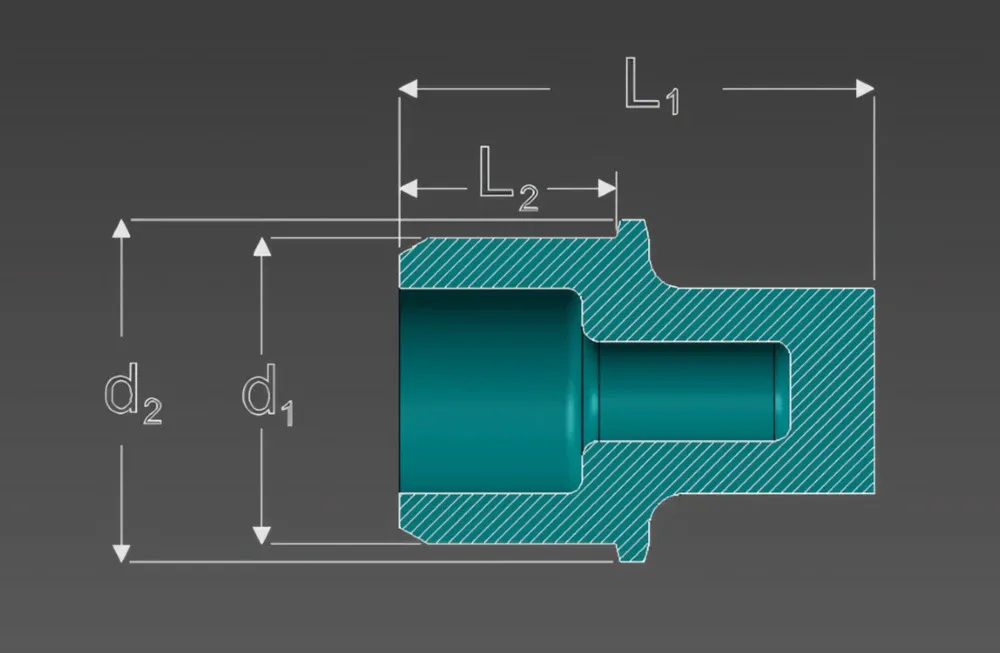

| SKU | d1 (mm) | d2 (mm) | L2 (mm) | L1 (mm) | Shore A | Qty/Pack |
|---|---|---|---|---|---|---|
| STM 3 | 2.69 | 3.43 | 5.18 | 20.87 | 60 | 1000 |
| STM 4 | 3.58 | 4.24 | 5.99 | 21.82 | 60 | 1000 |
| STM 5 | 4.57 | 5.21 | 5.56 | 20.75 | 60 | 500 |
| STM 6 | 5.54 | 6.6 | 7.09 | 23.42 | 60 | 500 |
| STM 6 XL | 5.89 | 6.6 | 6.86 | 23.42 | 60 | 500 |
| STM 7 | 7.06 | 8.13 | 7.09 | 22.71 | 60 | 500 |
| STM 8 | 7.19 | 8.41 | 7.49 | 22.76 | 60 | 500 |
| STM 8 XL | 7.52 | 8.13 | 7.09 | 22.71 | 60 | 250 |
| STM 9 | 8.53 | 9.78 | 8.36 | 25.25 | 60 | 250 |
| STM 10 | 9.09 | 10.39 | 7.01 | 24 | 60 | 250 |
| STM 11 | 9.96 | 11.18 | 8.89 | 19.05 | 60 | 250 |
| STM 12 | 10.82 | 12.42 | 8.79 | 20.12 | 60 | 250 |
| STM 13 | 11.46 | 12.95 | 8.89 | 19.05 | 60 | 250 |
| STM 16 | 14.81 | 16.61 | 11 | 23.01 | 60 | 100 |
| STM 20 | 18.39 | 20.6 | 13 | 28.5 | 60 | 100 |
| STM 24 | 22.76 | 24.05 | 16 | 37.85 | 60 | 50 |
