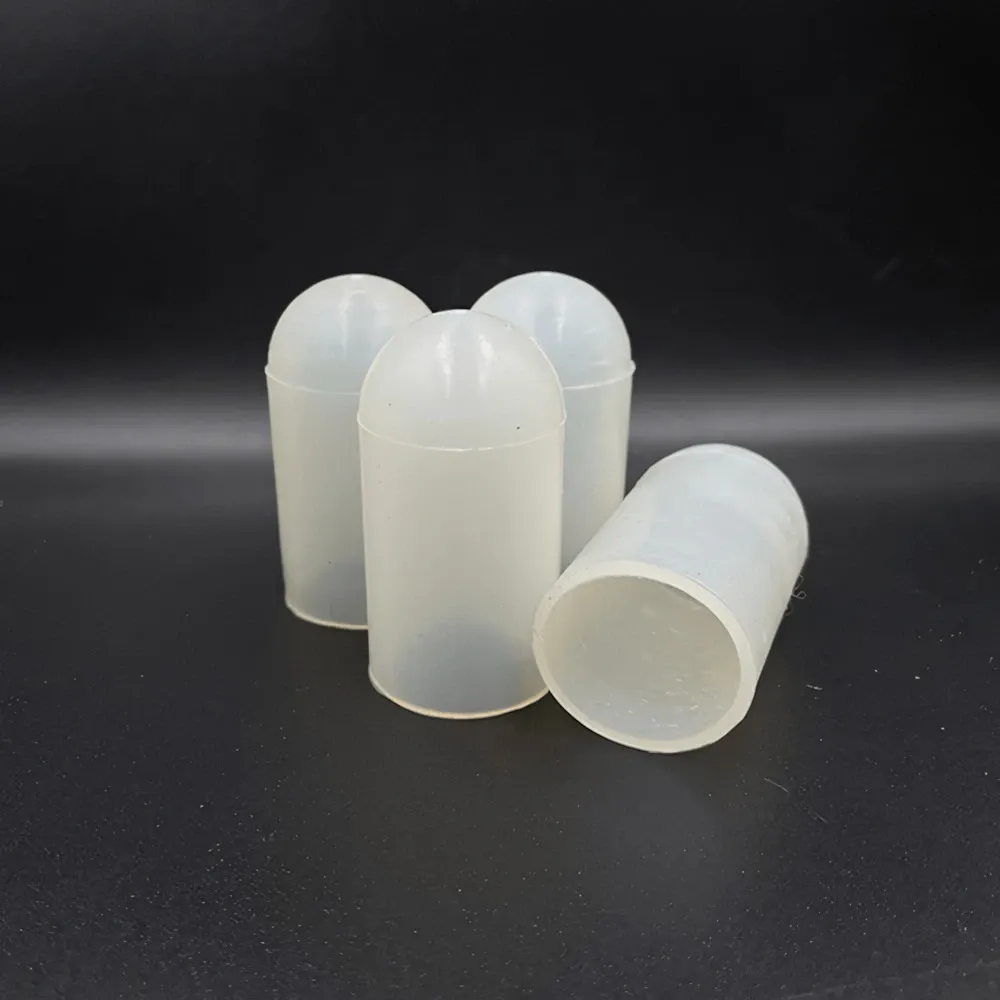

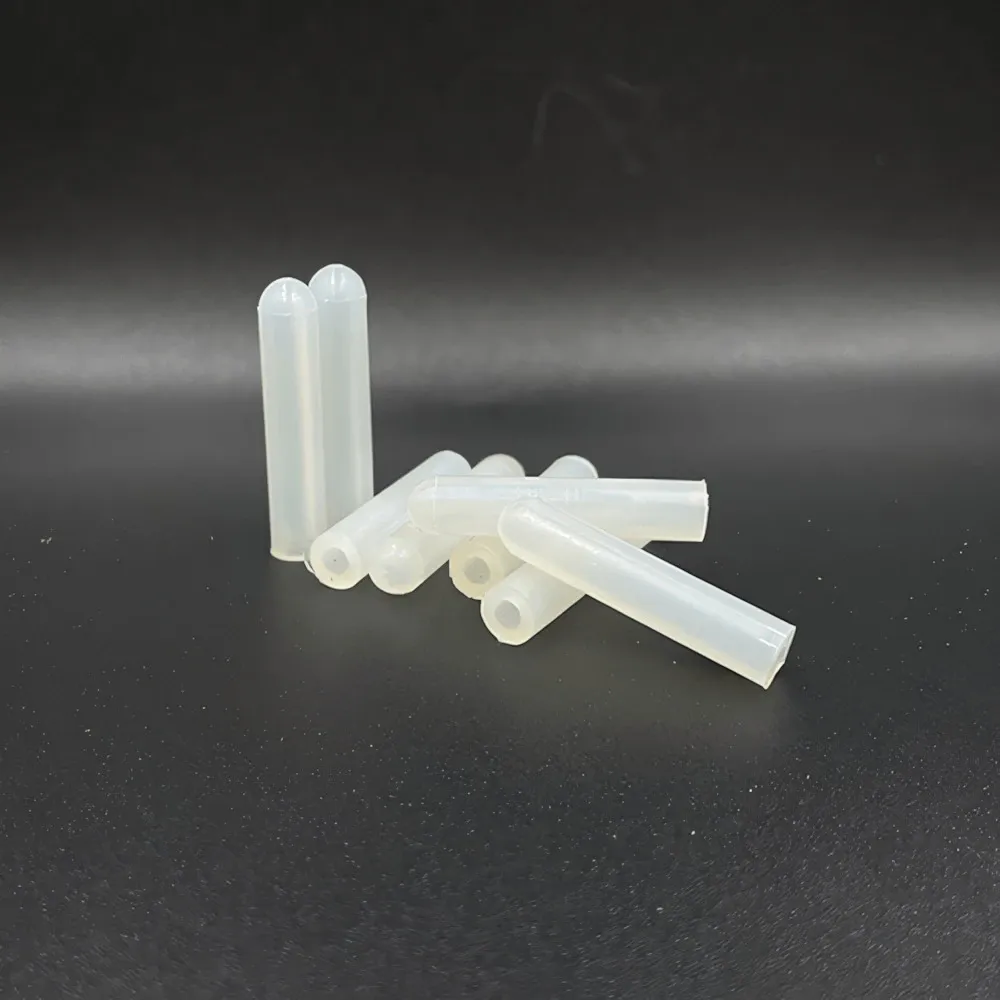

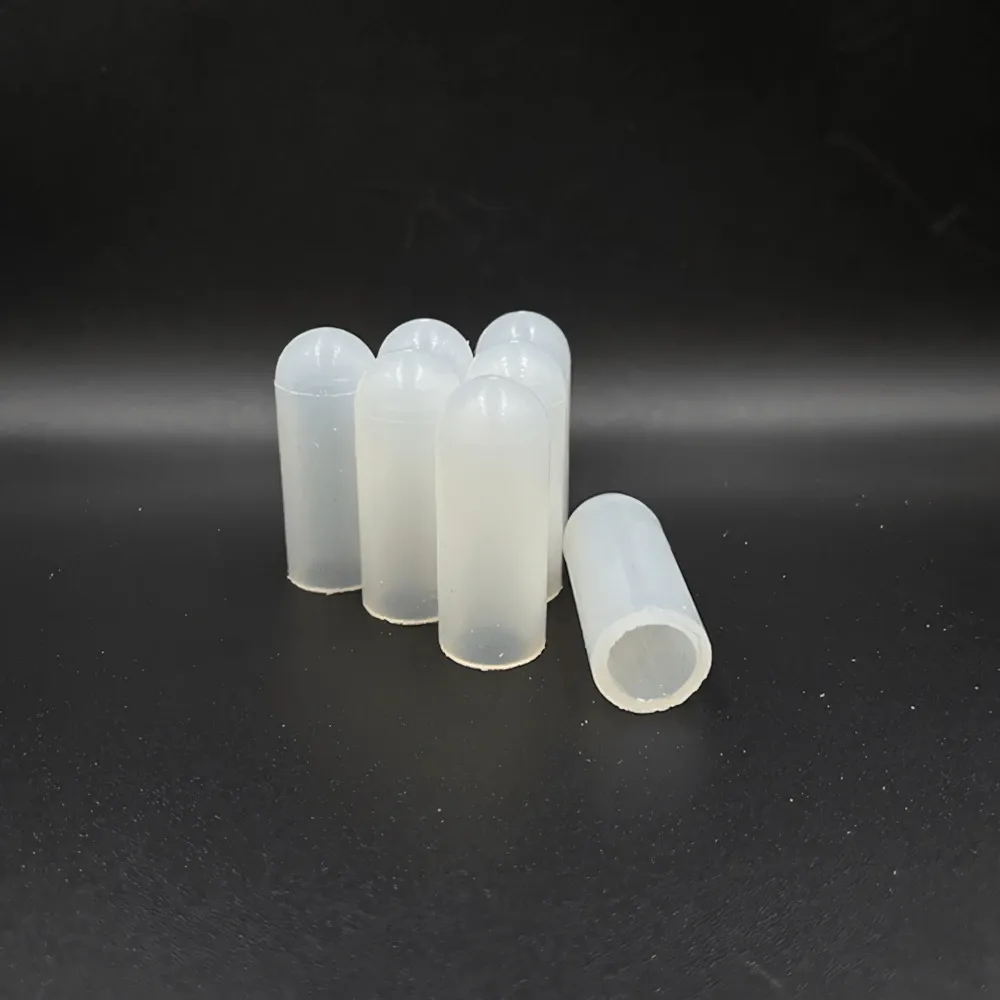

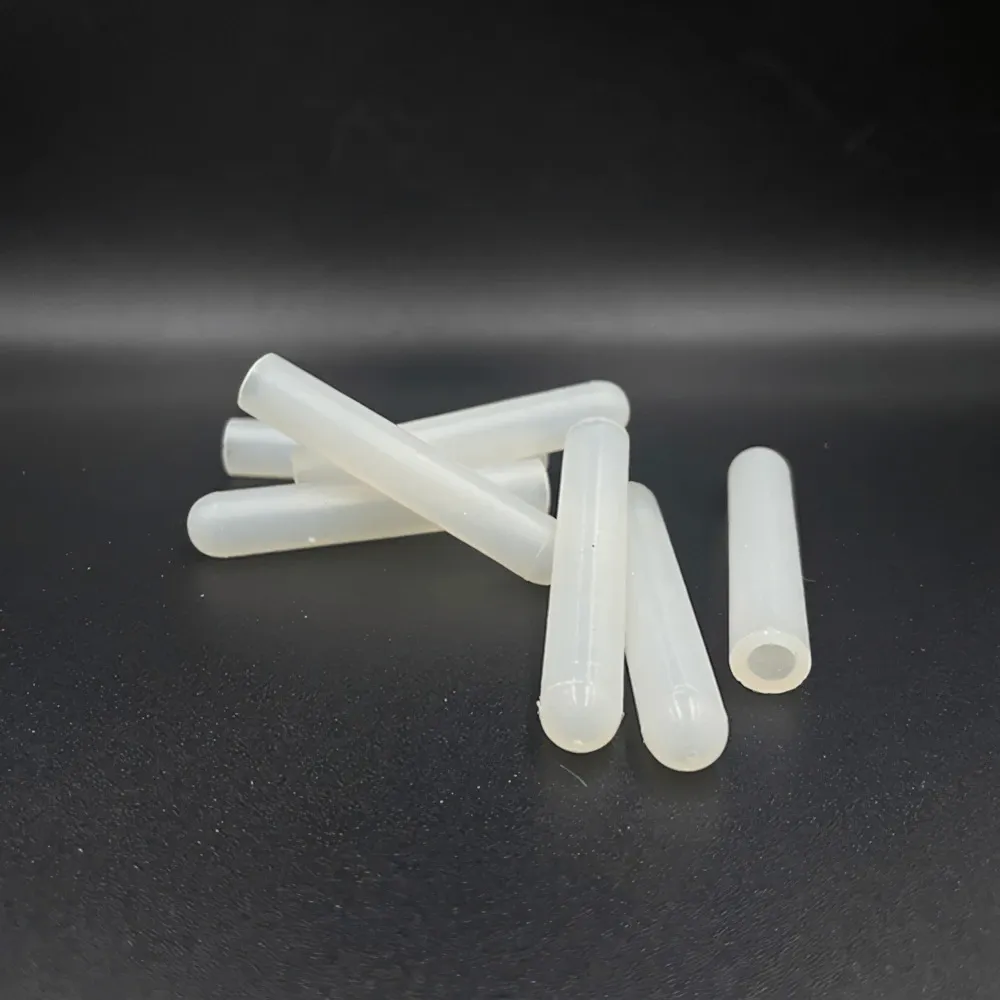

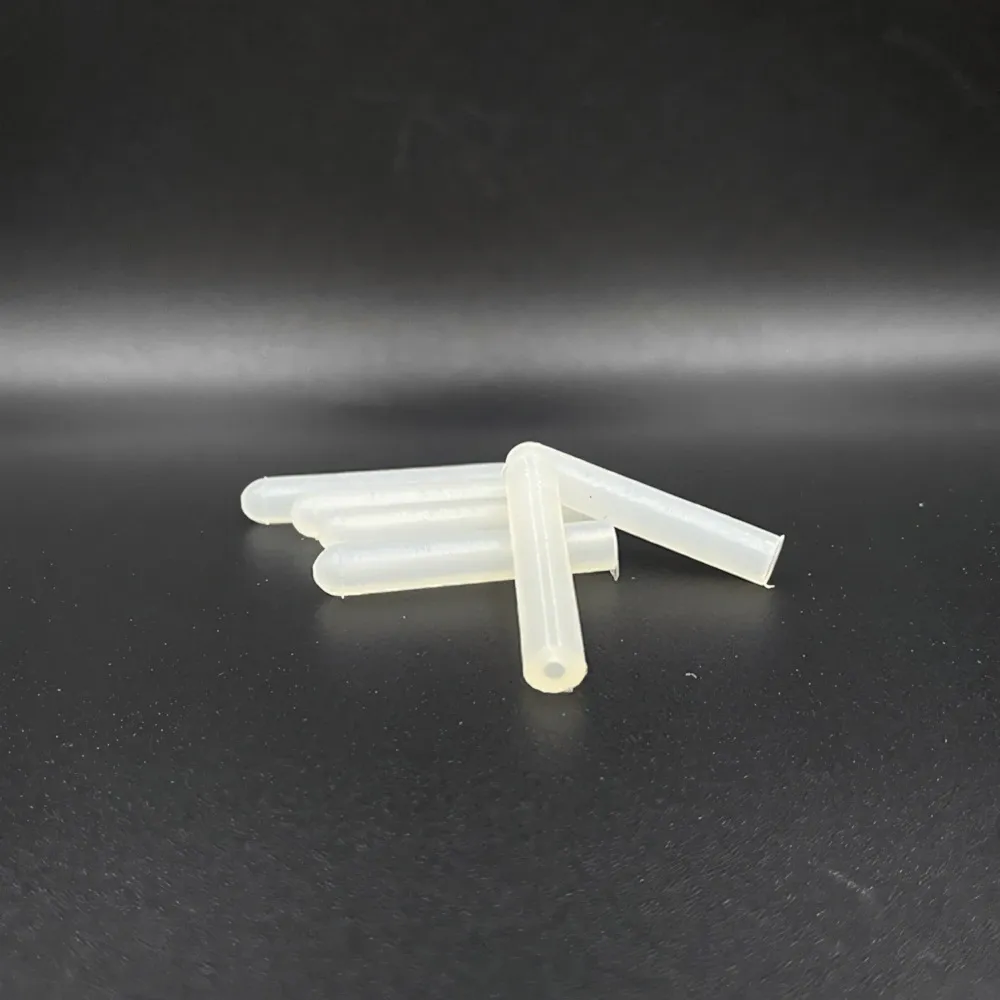

Masking caps with straight axis, round and cylindrical design.
Shore A
55-55
Temp. Range
-90°C ~ 315°C
Post Cure
Yes
Chemical Res.
Yes
Acid Res.
Yes
Technical information and usage areas
All our products are manufactured in our facility with special recipes and quality certifications (ISO 9001:2015, RoHS, REACH).
Cylinder caps have a flat-axis, round-shaped, cylindrical design. Designed to provide full protection in masking applications.
They are masking caps with high heat and acid resistance in powder coating, electrolysis and anodizing.
Material: Manufactured in our factory with our own formula silicone compounds and special activators in varying hardness (50-80 ShoreA).
Post Cure: After production, it is subjected to final curing (postcure) process for 4 hours in our special ovens.
71 variants available

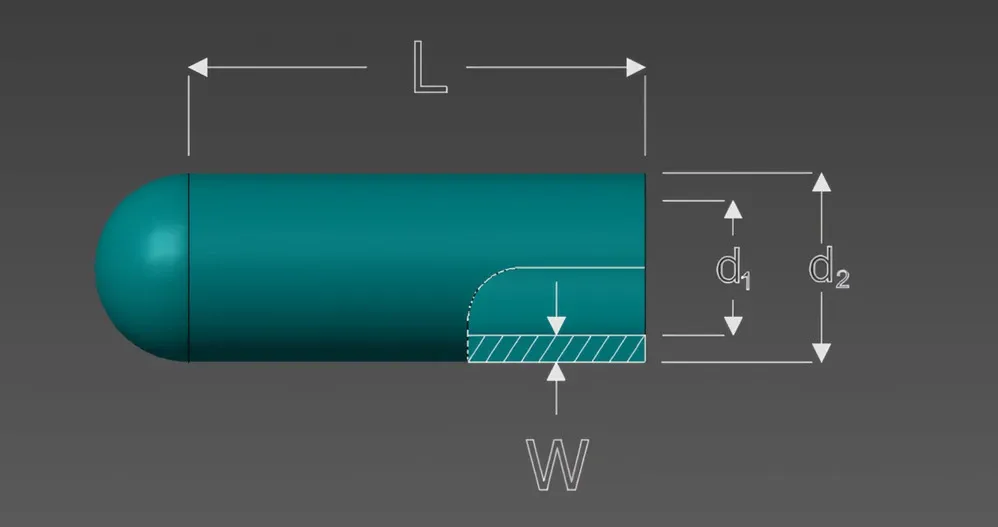

| SKU | d1 (mm) | d2 (mm) | W (mm) | L (mm) | Ø | Shore A | Qty/Pack |
|---|---|---|---|---|---|---|---|
| SEC 62 - 750 | 1.57 | 3.81 | 1.12 | 19.05 | M1.6 | 55 | 1000 |
| SEC 62 - 1000 | 1.57 | 4.62 | 1.35 | 25.4 | M1.6 | 55 | 1000 |
| SEC 70 - 1000 | 1.78 | 4.08 | 1.15 | 25.4 | M2 | 55 | 1000 |
| SEC 80 - 750 | 2.03 | 5.08 | 1.52 | 19.05 | M2 | 55 | 1000 |
| SEC 93 - 1000 | 2.36 | 4.95 | 1.3 | 25.4 | M2.5 | 55 | 1000 |
| SEC 100 - 1000 | 2.54 | 5.14 | 1.3 | 25.4 | M3 | 55 | 1000 |
| SEC 109 - 1000 | 2.77 | 5.37 | 1.3 | 25.4 | M3 | 55 | 1000 |
| SEC 125 - 1000 | 3.18 | 5.78 | 1.3 | 25.4 | M3.5 | 55 | 1000 |
| SEC 140 - 1500 | 3.56 | 6.6 | 1.52 | 38.1 | ARA ÖLÇÜ | 55 | 1000 |
| SEC 148 - 500 | 3.76 | 6.81 | 1.52 | 12.7 | M4 | 55 | 1000 |
| SEC 148 - 750 | 3.76 | 6.8 | 1.52 | 19.05 | M4 | 55 | 1000 |
| SEC 148 - 1000 | 3.76 | 6.8 | 1.52 | 25.4 | M4 | 55 | 1000 |
| SEC 148 - 1500 | 3.76 | 6.8 | 1.52 | 38.1 | M4 | 55 | 1000 |
| SEC 156 - 1500 | 3.96 | 7 | 1.52 | 38.1 | M4 | 55 | 1000 |
| SEC 172 - 1500 | 4.37 | 7.41 | 1.52 | 38.1 | M4.5 | 55 | 1000 |
| SEC 187 - 500 | 4.75 | 7.79 | 1.52 | 12.7 | M5 | 55 | 1000 |
| SEC 187 - 750 | 4.75 | 7.79 | 1.52 | 19.05 | M5 | 55 | 1000 |
| SEC 187 - 1000 | 4.75 | 7.79 | 1.52 | 25.4 | M5 | 55 | 1000 |
| SEC 187 - 1500 | 4.75 | 7.79 | 1.52 | 38.1 | M5 | 55 | 500 |
| SEC 218 - 1000 | 5.54 | 8.58 | 1.52 | 25.4 | M5.5 | 55 | 500 |
| SEC 223 - 500 | 5.66 | 8.7 | 1.52 | 12.7 | M6 | 55 | 500 |
| SEC 223 - 750 | 5.66 | 8.7 | 1.52 | 19.05 | M6 | 55 | 500 |
| SEC 223 - 1000 | 5.66 | 8.7 | 1.52 | 25.4 | M6 | 55 | 500 |
| SEC 223 - 1500 | 5.66 | 8.7 | 1.52 | 38.1 | M6 | 55 | 500 |
| SEC 223 - 2165 | 5.66 | 8.7 | 1.52 | 55 | M6 | 55 | 500 |
| SEC 234 - 1000 | 5.94 | 8.98 | 1.52 | 25.4 | M6 | 55 | 500 |
| SEC 234 - 1500 | 5.94 | 8.98 | 1.52 | 38.1 | M6 | 55 | 500 |
| SEC 250 - 1000 | 6.35 | 9.39 | 1.52 | 25.4 | M7 | 55 | 500 |
| SEC 260 - 1000 | 6.6 | 9.64 | 1.52 | 25.4 | M7 | 55 | 500 |
| SEC 281 - 1000 | 7.14 | 10.18 | 1.52 | 25.4 | ARA ÖLÇÜ | 55 | 500 |
| SEC 295 - 500 | 7.49 | 10.53 | 1.52 | 12.7 | M8 | 55 | 500 |
| SEC 295 - 750 | 7.49 | 10.53 | 1.52 | 19.05 | M8 | 55 | 500 |
| SEC 295 - 1000 | 7.49 | 10.53 | 1.52 | 25.4 | M8 | 55 | 500 |
| SEC 295 - 1500 | 7.49 | 10.53 | 1.52 | 38.1 | M8 | 55 | 500 |
| SEC 312 - 1000 | 7.92 | 10.96 | 1.52 | 25.4 | M8 | 55 | 500 |
| SEC 312 - 1500 | 7.92 | 10.96 | 1.52 | 38.1 | M8 | 55 | 500 |
| SEC 355 - 1000 | 9.02 | 12.06 | 1.52 | 25.4 | ARA ÖLÇÜ | 55 | 500 |
| SEC 375 - 750 | 9.53 | 12.57 | 1.52 | 19.05 | M10 | 55 | 500 |
| SEC 375 - 1000 | 9.53 | 12.57 | 1.52 | 25.4 | M10 | 55 | 500 |
| SEC 375 - 1500 | 9.53 | 12.57 | 1.52 | 38.1 | M10 | 55 | 500 |
| SEC 375 - 2000 | 9.53 | 12.57 | 1.52 | 50.8 | M10 | 55 | 500 |
| SEC 406 - 1000 | 10.31 | 13.35 | 1.52 | 25.4 | M11 | 55 | 500 |
| SEC 437 - 1000 | 11.1 | 14.14 | 1.52 | 25.4 | ARA ÖLÇÜ | 55 | 500 |
| SEC 437 - 2000 | 11.1 | 14.14 | 1.52 | 50.8 | ARA ÖLÇÜ | 55 | 500 |
| SEC 456 - 1000 | 11.58 | 14.62 | 1.52 | 25.4 | M12 | 55 | 500 |
| SEC 456 - 1500 | 11.58 | 14.62 | 1.52 | 38.1 | M12 | 55 | 500 |
| SEC 500 - 1500 | 12.7 | 15.74 | 1.52 | 38.1 | ARA ÖLÇÜ | 55 | 250 |
| SEC 535 - 1500 | 13.59 | 16.63 | 1.52 | 38.1 | M14 | 55 | 250 |
| SEC 562 - 1500 | 14.27 | 17.31 | 1.52 | 38.1 | M15 | 55 | 250 |
| SEC 600 - 1500 | 15.24 | 18.28 | 1.52 | 38.1 | M16 | 55 | 250 |
| SEC 625 - 1500 | 15.88 | 18.92 | 1.52 | 38.1 | M16 | 55 | 250 |
| SEC 625 - 2500 | 15.88 | 18.92 | 1.52 | 63.5 | M16 | 55 | 250 |
| SEC 687 - 1500 | 17.45 | 20.49 | 1.52 | 38.1 | M18 | 55 | 250 |
| SEC 750 - 1500 | 19.05 | 22.09 | 1.52 | 38.1 | M20 | 55 | 250 |
| SEC 780 - 1500 | 19.81 | 22.85 | 1.52 | 38.1 | M20 | 55 | 250 |
| SEC 812 - 1500 | 20.62 | 23.66 | 1.52 | 38.1 | M22 | 55 | 250 |
| SEC 875 - 1500 | 22.23 | 25.27 | 1.52 | 38.1 | M22 | 55 | 250 |
| SEC 937 - 1500 | 23.8 | 26.84 | 1.52 | 38.1 | M24 | 55 | 250 |
| SEC 970 - 1500 | 24.64 | 27.68 | 1.52 | 38.1 | ARA ÖLÇÜ | 55 | 100 |
| SEC 1000 - 1500 | 25.4 | 28.44 | 1.52 | 38.1 | M26 | 55 | 100 |
| SEC 1062 - 1500 | 26.97 | 30.01 | 1.52 | 38.1 | M27 | 55 | 100 |
| SEC 1125 - 1500 | 28.58 | 31.62 | 1.52 | 38.1 | M30 | 55 | 100 |
| SEC 1187 - 1500 | 30.15 | 33.19 | 1.52 | 38.1 | ARA ÖLÇÜ | 55 | 100 |
| SEC 1250 - 1500 | 31.75 | 34.79 | 1.52 | 38.1 | M32 | 55 | 100 |
| SEC 1350 - 1500 | 34.29 | 37.33 | 1.52 | 38.1 | M36 | 55 | 100 |
| SEC 1500 - 1500 | 38.1 | 41.14 | 1.52 | 38.1 | ARA ÖLÇÜ | 55 | 100 |
| SEC 1625 - 2000 | 41.28 | 44.32 | 1.52 | 50.8 | M42 | 55 | 100 |
| SEC 1750 - 2000 | 44.45 | 47.49 | 1.52 | 50.8 | ARA ÖLÇÜ | 55 | 100 |
| SEC 1875 - 2000 | 47.63 | 50.67 | 1.52 | 50.8 | M48 | 55 | 100 |
| SEC 2000 - 2000 | 50.8 | 53.84 | 1.52 | 50.8 | ARA ÖLÇÜ | 55 | 100 |
| SEC 2105 - 2000 | 53.47 | 56.51 | 1.52 | 50.8 | ARA ÖLÇÜ | 55 | 100 |
