Flanged tapered plugs usable as both plug and cap.
Shore A
55-55
Temp. Range
-90°C ~ 315°C
Post Cure
Yes
Chemical Res.
Yes
Acid Res.
Yes
Technical information and usage areas
All our products are manufactured in our facility with special recipes and quality certifications (ISO 9001:2015, RoHS, REACH).
Flanged Tapered Plug can be used as both plug and cap with its tapered and hollow design. Flanged tapered plug provides ease of use for set screws and headless studs.
Thanks to the flange at the head, it offers grounding and circular masking in various holes. They are masking plugs with high heat and acid resistance.
Material: Manufactured in our factory with our own formula silicone compounds and special activators in varying hardness (50-80 ShoreA).
Post Cure: After production, it is subjected to final curing (postcure) process for 4 hours in our special ovens.
10 variants available

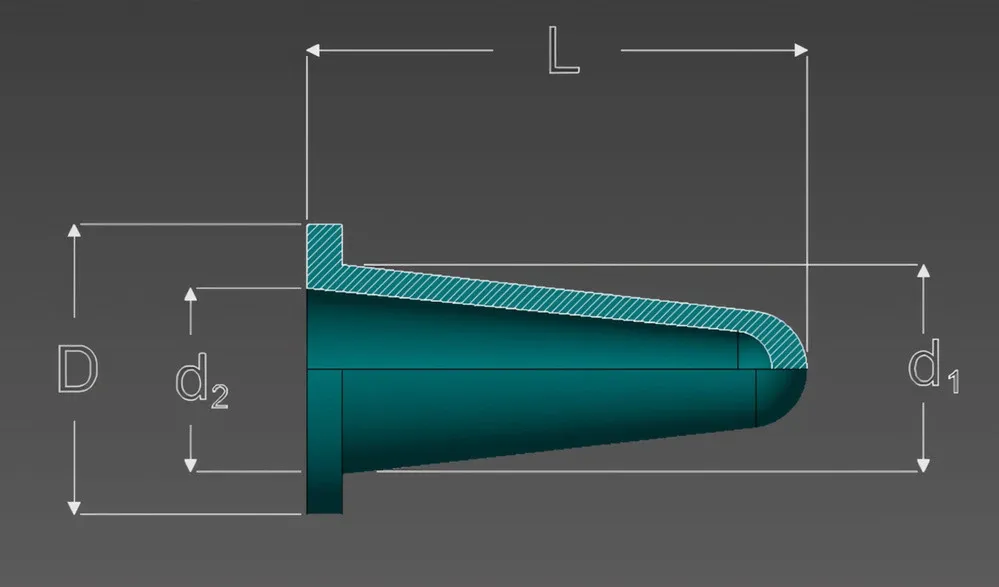

| SKU | d1 (mm) | d2 (mm) | D (mm) | L (mm) | Shore A | Qty/Pack |
|---|---|---|---|---|---|---|
| SCT 250-130 | 6.35 | 3.3 | 12.7 | 23.01 | 55 | 500 |
| SCT 316-216 | 8.03 | 5.49 | 12.7 | 25.4 | 55 | 500 |
| SCT 335-177 | 8.51 | 4.5 | 15.88 | 25.4 | 55 | 500 |
| SCT 394-197 | 10.01 | 5 | 16.51 | 27.99 | 55 | 500 |
| SCT 400-230 | 10.16 | 5.84 | 16.13 | 27.94 | 55 | 500 |
| SCT 551-315 | 14 | 8 | 19.05 | 35.99 | 55 | 250 |
| SCT 689-453 | 17.5 | 11.51 | 24.89 | 38.1 | 55 | 250 |
| SCT 767-532 | 19.48 | 13.51 | 27.94 | 51.03 | 55 | 250 |
| SCT 819-583 | 20.8 | 14.81 | 25.4 | 49 | 55 | 250 |
| SCT 866-630 | 22 | 16 | 30.99 | 53.01 | 55 | 250 |
