Ideal tab caps for contact pins, rectangular connectors and square studs.
Shore A
55-55
Temp. Range
-90°C ~ 315°C
Post Cure
Yes
Chemical Res.
Yes
Acid Res.
Yes
Technical information and usage areas
All our products are manufactured in our facility with special recipes and quality certifications (ISO 9001:2015, RoHS, REACH).

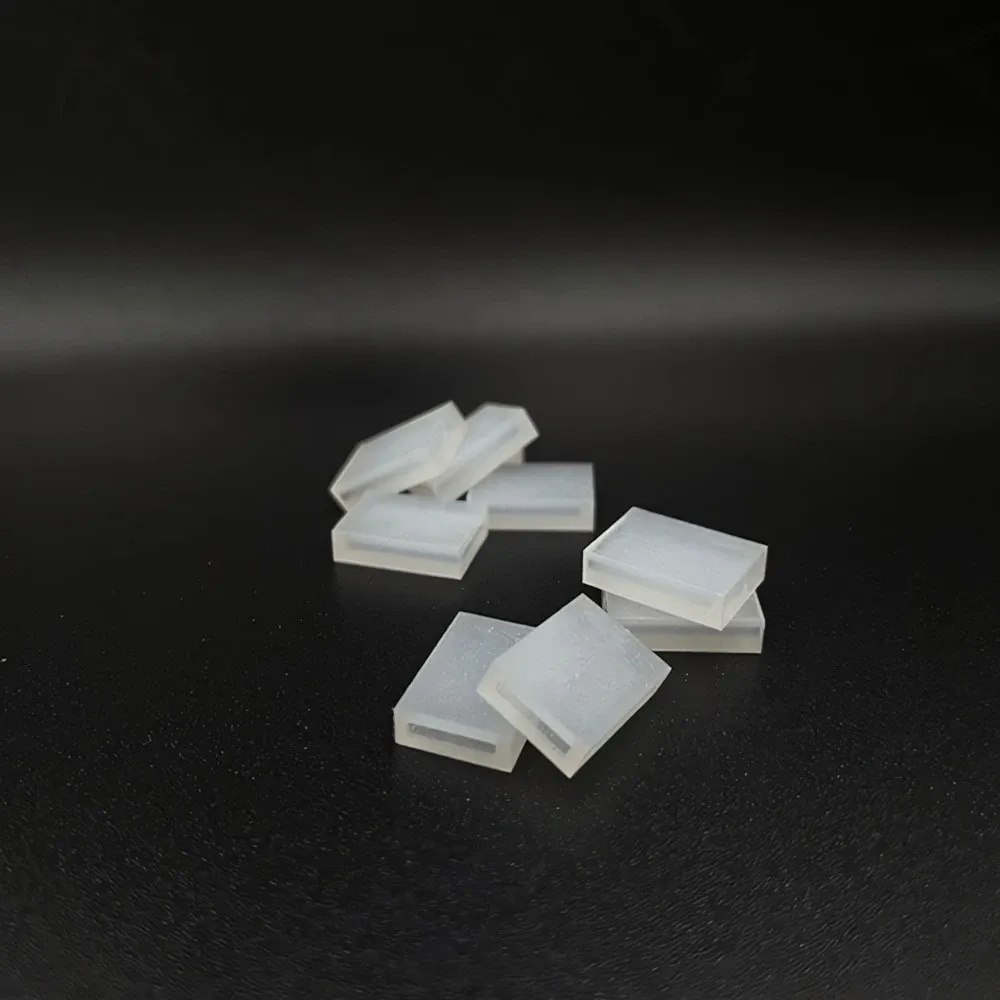

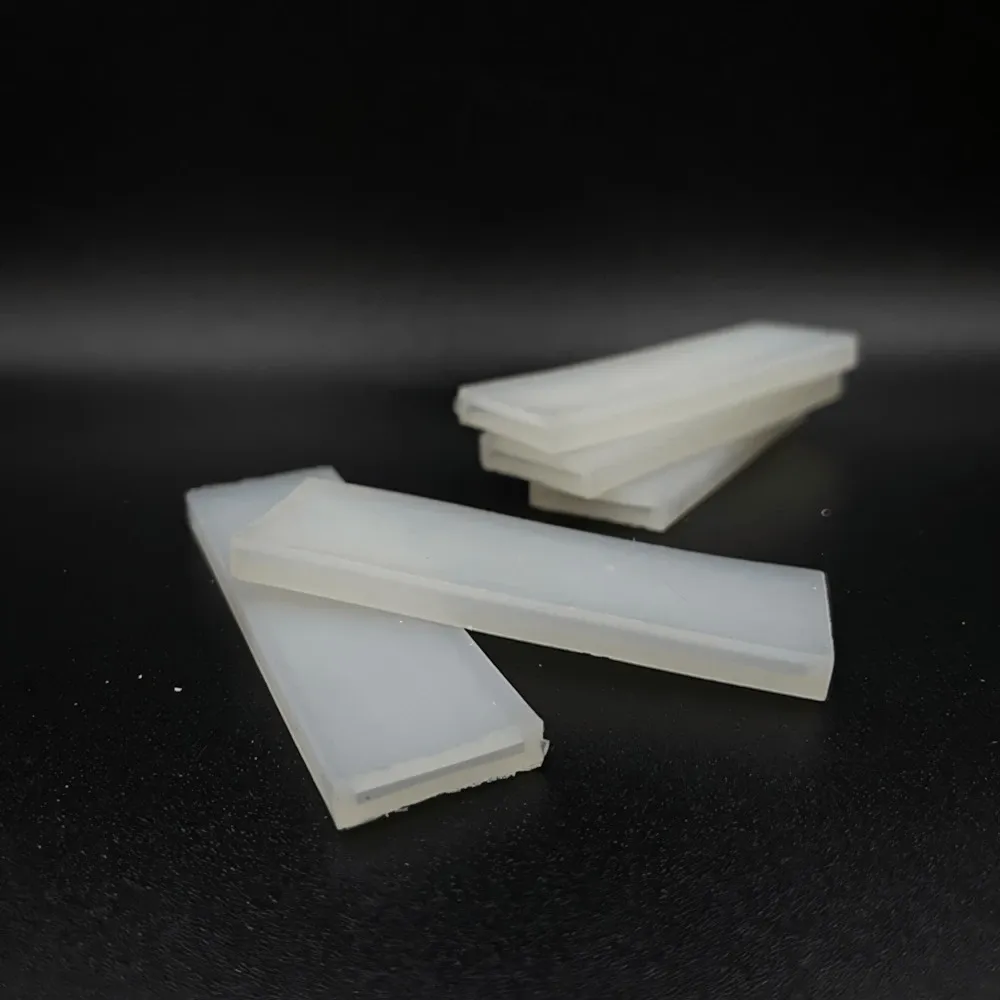

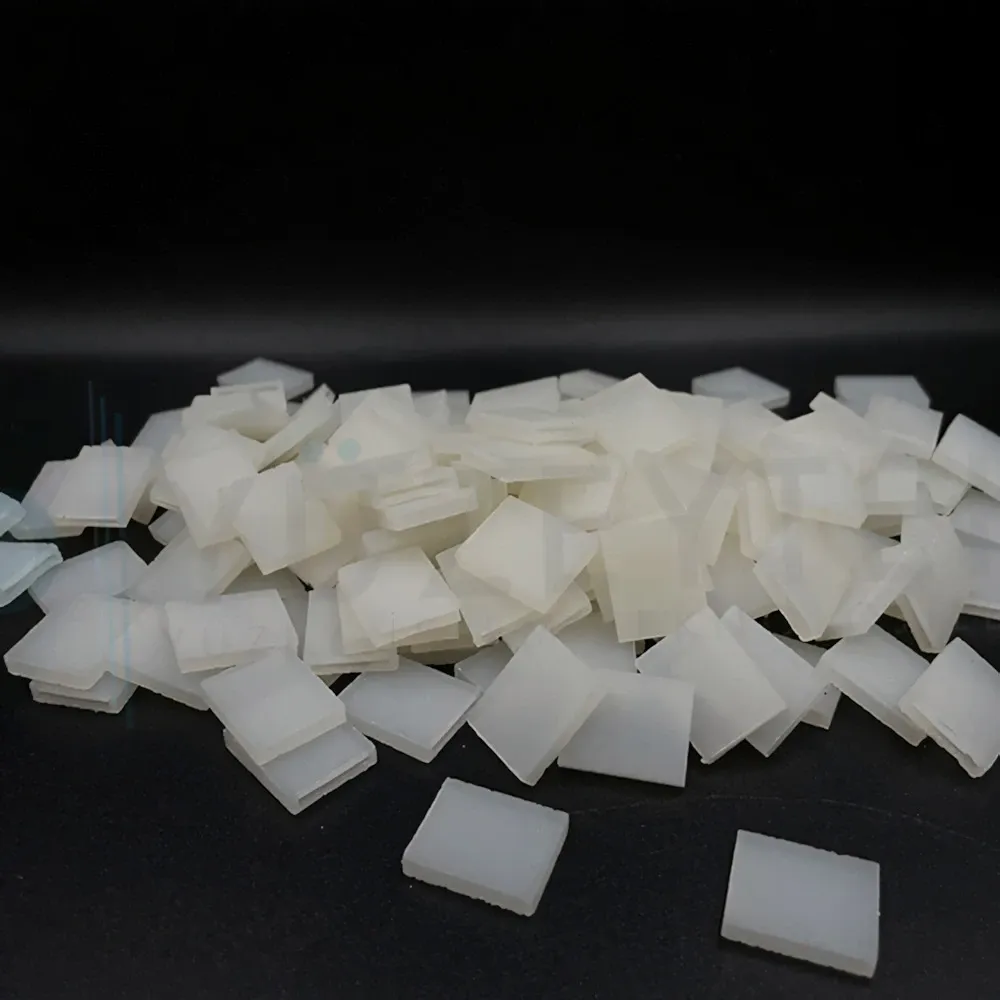

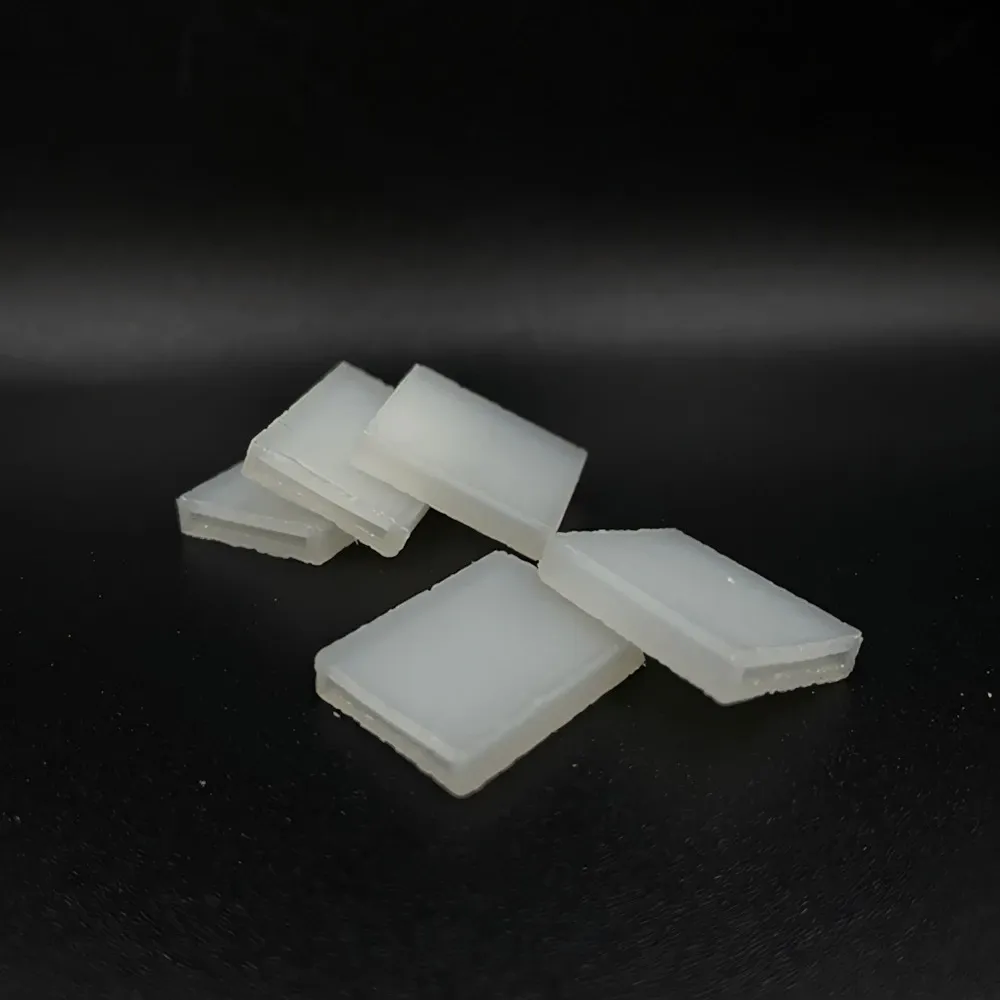

Blade caps are our masking cap models ideally used for contact pins, rectangular connectors, and rectangular square studs.
Material: Manufactured in our factory with our own formula silicone compounds and special activators in varying hardness (50-80 ShoreA).
Post Cure: After production, it is subjected to final curing (postcure) process for 4 hours in our special ovens.

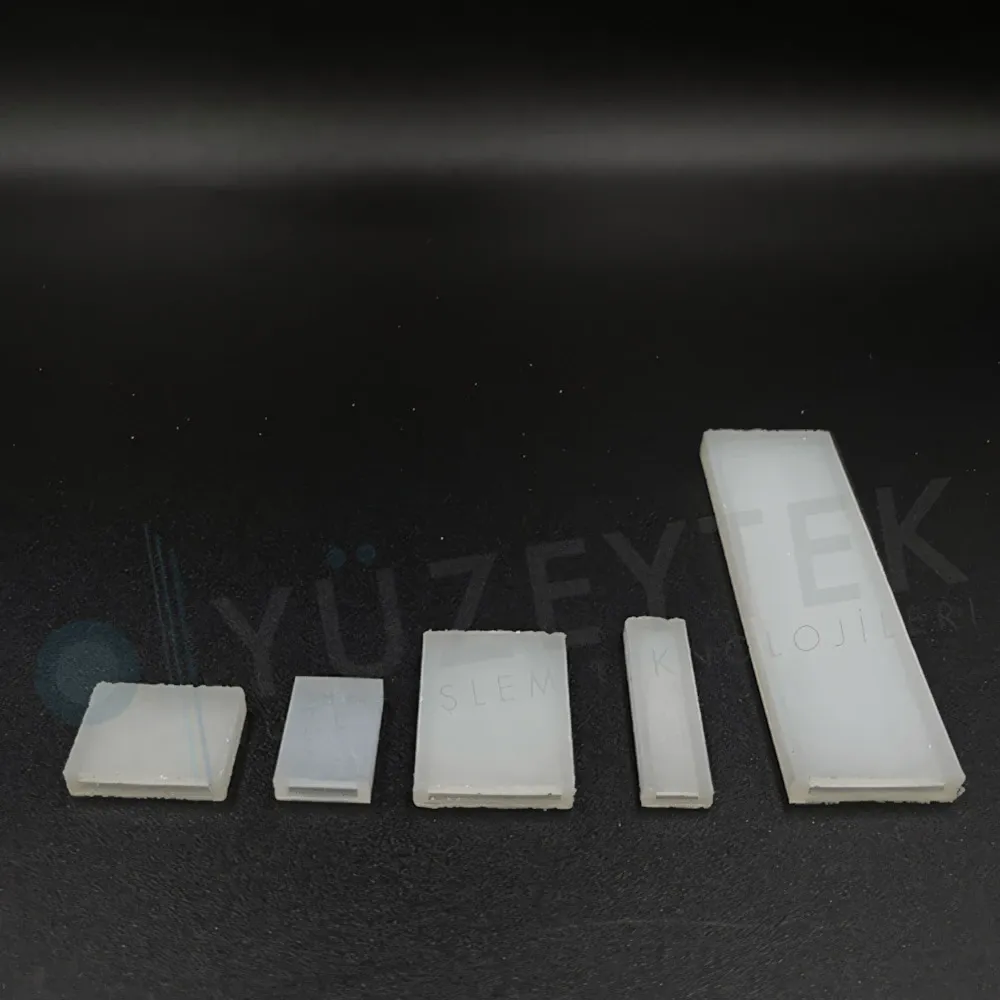

7 variants available

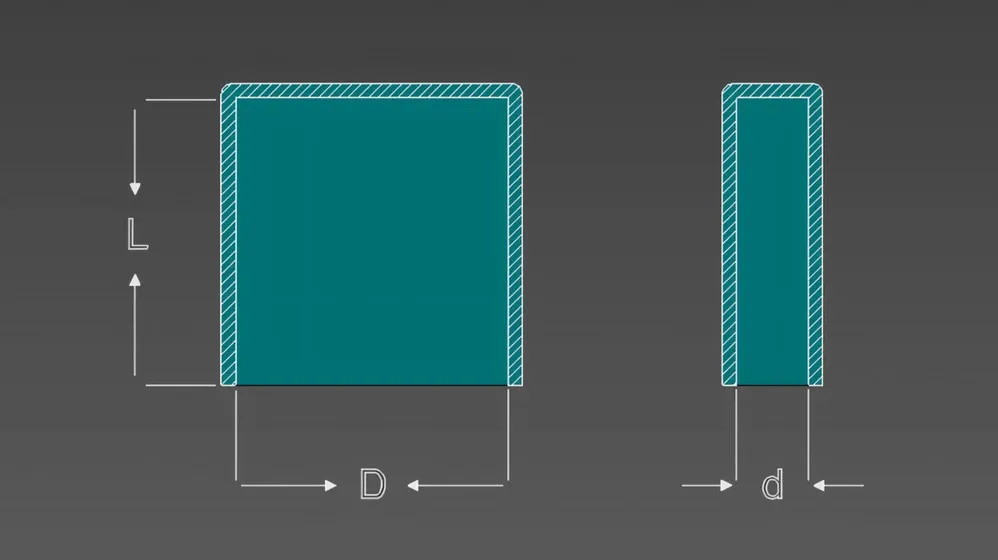

| SKU | D (mm) | d (mm) | L (mm) | Shore A | Qty/Pack |
|---|---|---|---|---|---|
| SCQ 157 | 3.99 | 0.61 | 20 | 55 | 1000 |
| SCQ 232 | 5.89 | 0.79 | 11 | 55 | 1000 |
| SCQ 250 | 6.35 | 0.79 | 11 | 55 | 1000 |
| SCQ 460 | 11.68 | 0.89 | 7.11 | 55 | 500 |
| SCQ 470 | 11.94 | 1.02 | 9.5 | 55 | 500 |
| SCQ 490 | 12.45 | 1.19 | 17.45 | 55 | 500 |
| SCQ 511 | 12.98 | 1.02 | 50 | 55 | 500 |
