Caps with finger grip effect that hold firmly on pressurized parts.
Shore A
55-55
Temp. Range
-90°C ~ 315°C
Post Cure
Yes
Chemical Res.
Yes
Acid Res.
Yes
Technical information and usage areas
All our products are manufactured in our facility with special recipes and quality certifications (ISO 9001:2015, RoHS, REACH).

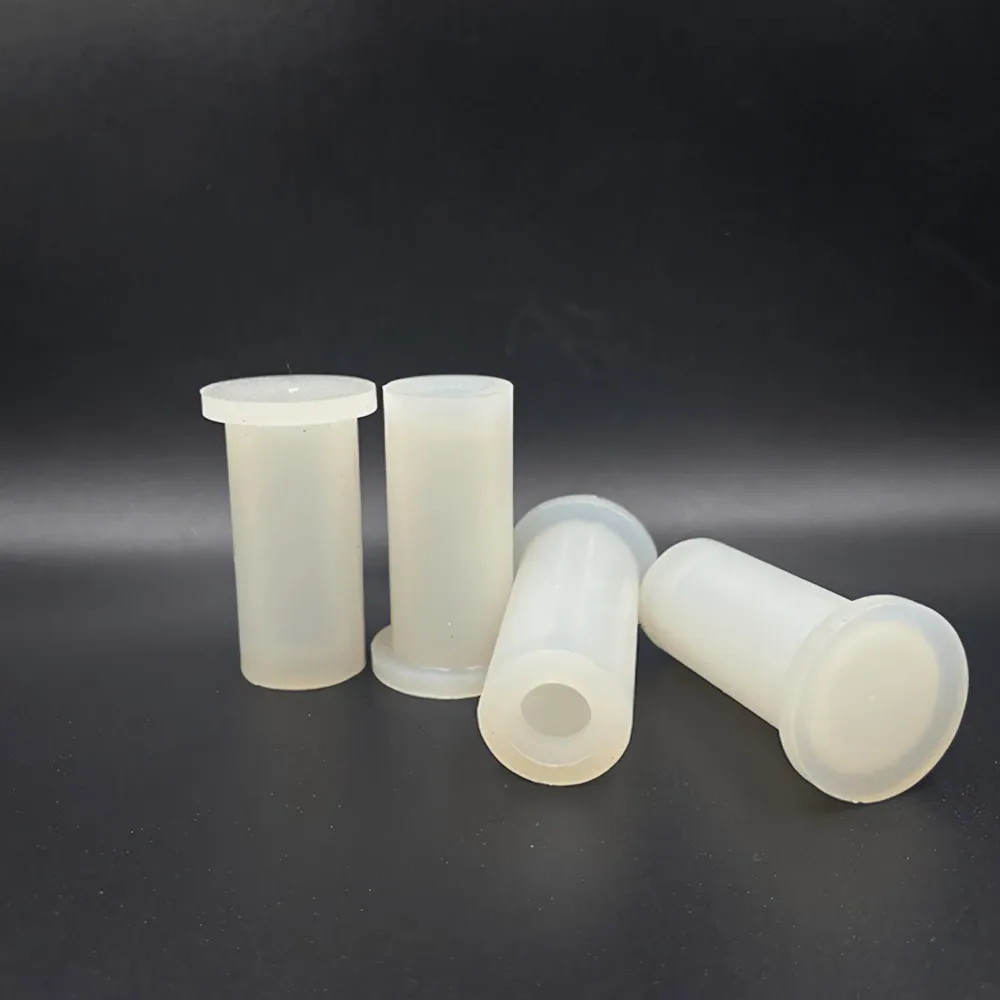

Barbed caps are designed in flat cover shape, with tapered ends creating a barb effect, preferred in situations where tight grip is desired in parts with pressure and air, with ergonomic head for easy removal.
Material: Manufactured in our factory with our own formula silicone compounds and special activators in varying hardness (50-80 ShoreA).
Post Cure: After production, it is subjected to final curing (postcure) process for 4 hours in our special ovens.
17 variants available

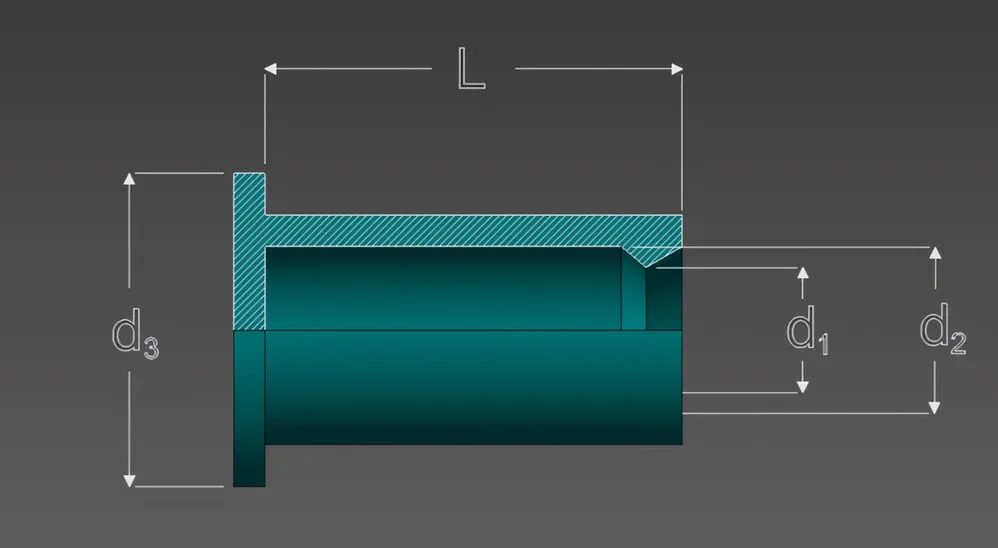

| SKU | d1 (mm) | d2 (mm) | d3 (mm) | L (mm) | Shore A | Qty/Pack |
|---|---|---|---|---|---|---|
| SCE 0157 - 1180 | 3.99 | 7.16 | 17.32 | 29.92 | 55 | 500 |
| SCE 0180 - 2000 | 4.57 | 7.75 | 17.91 | 50.8 | 55 | 250 |
| SCE 0187 - 1377 | 4.75 | 7.92 | 18.08 | 34.98 | 55 | 250 |
| SCE 0234 - 2000 | 5.94 | 7.92 | 19.28 | 50.8 | 55 | 250 |
| SCE 0236 - 1180 | 5.99 | 9.17 | 19.33 | 29.97 | 55 | 250 |
| SCE 0275 - 1180 | 6.99 | 10.16 | 20.32 | 29.97 | 55 | 250 |
| SCE 0294 - 1330 | 7.74 | 10.64 | 20.8 | 33.78 | 55 | 250 |
| SCE 0315 - 974 | 8 | 11.18 | 21.34 | 24.74 | 55 | 250 |
| SCE 0315 - 1180 | 8 | 11.18 | 21.34 | 29.97 | 55 | 250 |
| SCE 0375 - 1421 | 9.53 | 12.7 | 22.86 | 36.09 | 55 | 250 |
| SCE 0438 - 950 | 11.13 | 14.3 | 24.46 | 24.13 | 55 | 100 |
| SCE 0485 - 1013 | 12.32 | 15.49 | 25.65 | 25.73 | 55 | 100 |
| SCE 0531 - 1180 | 13.49 | 16.66 | 26.82 | 29.97 | 55 | 100 |
| SCE 0622 - 1180 | 15.8 | 18.97 | 29.13 | 29.97 | 55 | 100 |
| SCE 0980 - 1654 | 24.9 | 26.9 | 38 | 42 | 55 | 100 |
| SCE 2500 - 2420 | 63.5 | 66.68 | 76.84 | 61.47 | 55 | 50 |
| SCE 2660 - 726 | 67.56 | 70.74 | 80.9 | 18.44 | 55 | 50 |
