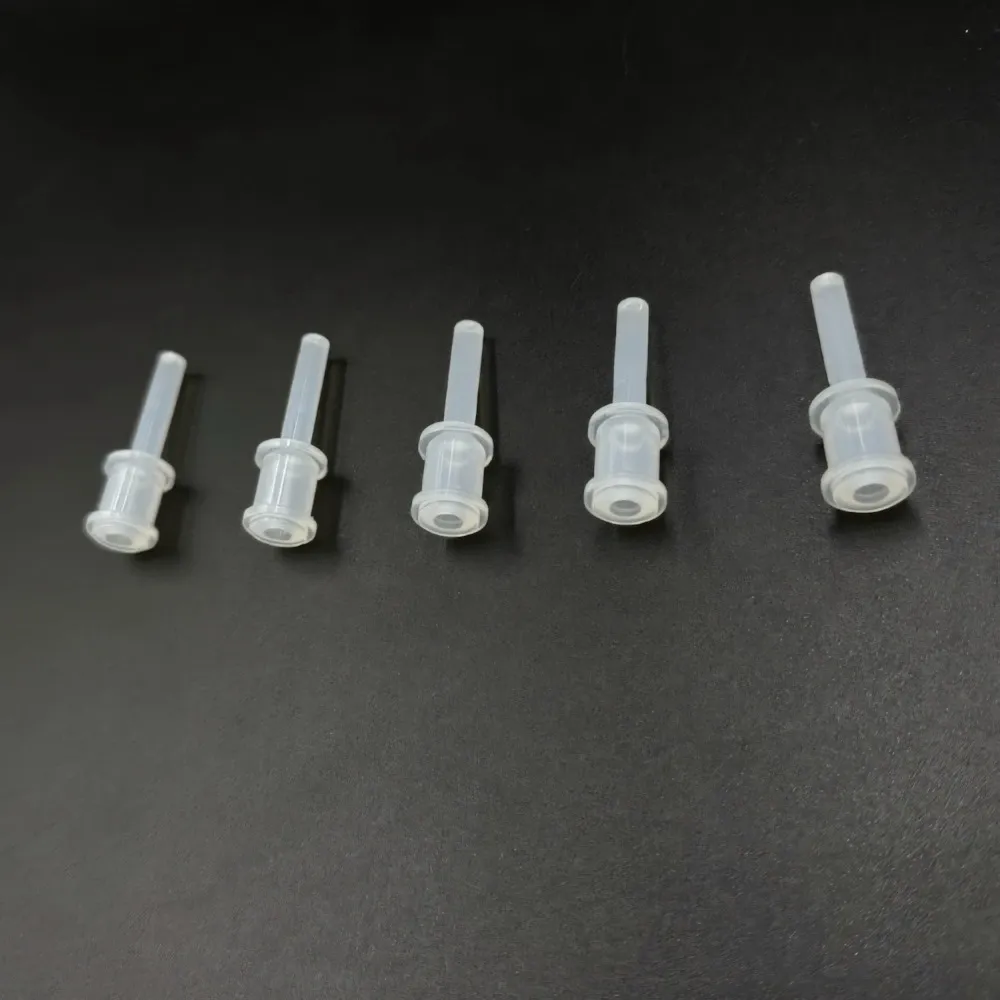

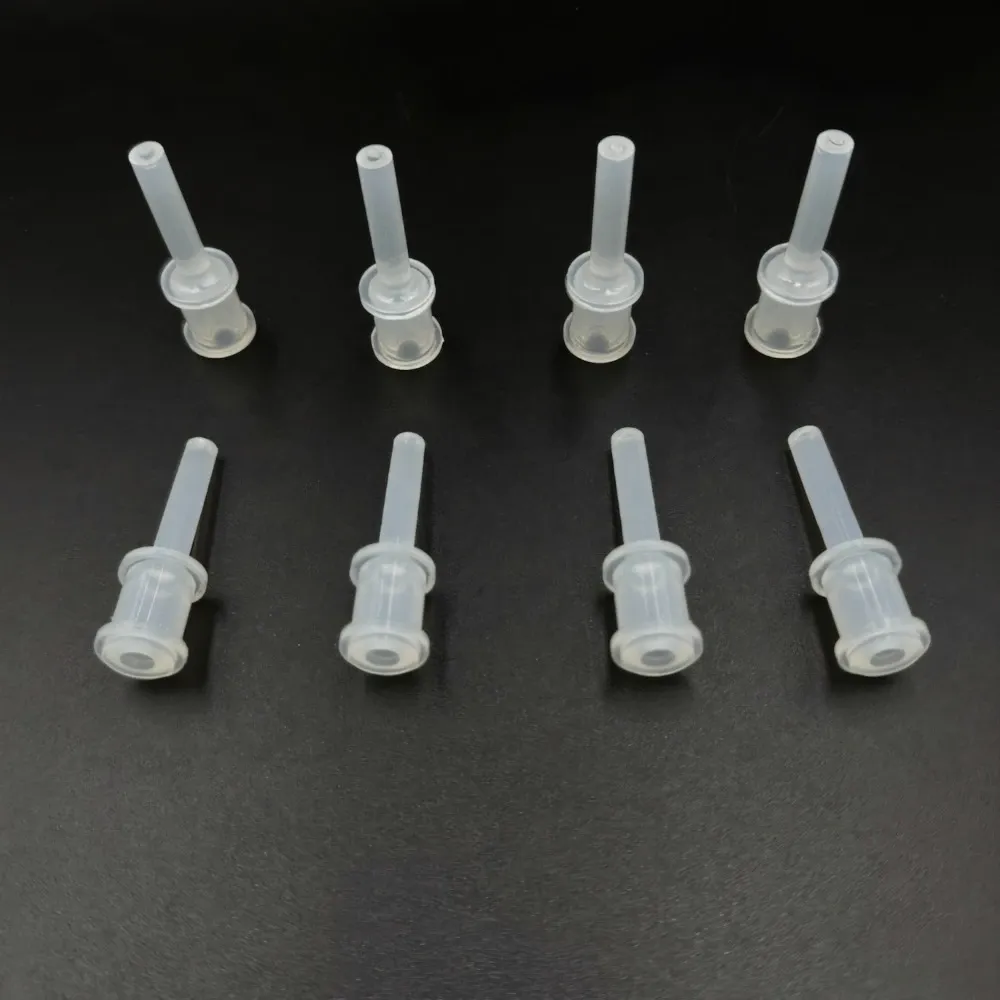

Masking plugs compatible with threaded holes of nuts and inner parts of pipes, preventing liquid and powder leaks with threaded structure.
Shore A
50-80
Temp. Range
-90°C ~ 315°C
Post Cure
Yes
Chemical Res.
Yes
Acid Res.
Yes
Technical information and usage areas
All our products are manufactured in our facility with special recipes and quality certifications (ISO 9001:2015, RoHS, REACH).
Threaded plugs are designed to be compatible with threaded holes of nuts and internal parts of pipes. Threaded plugs can be used in different diameters at the same time with their low-angle conical structures. Thanks to the threads on the plug, it never allows liquid and dust leakage during painting with compression effect.
Threaded plugs are made from silicone compound and come in different sizes. Plugs with increasing diameters are very practical to use. Threaded plugs are masking plugs with high heat and acid resistance.
Material: Manufactured in our factory with our own formula silicone compounds and special activators in varying hardness (50-80 ShoreA) depending on diameters.
Post Cure: After production, it is subjected to final curing (postcure) process for 4 hours in our special ovens.
29 variants available
| SKU | d1 (mm) | d2 (mm) | L (mm) | Shore A | Qty/Pack |
|---|---|---|---|---|---|
| DFP 157-079 | 2.01 | 3.99 | 19.05 | 50 | 500 |
| DFP 236-157 | 3.99 | 5.99 | 25.4 | 80 | 500 |
| DFP 415-188 | 4.78 | 10.54 | 25.4 | 70 | 500 |
| DFP 315-236 | 5.99 | 8 | 25.4 | 80 | 500 |
| DFP 406-313 | 7.95 | 10.31 | 25.4 | 75 | 500 |
| DFP 394-315 | 8 | 10.01 | 25.4 | 80 | 500 |
| DFP 472-394 | 10.01 | 11.99 | 25.4 | 75 | 250 |
| DFP 468-406 | 10.31 | 11.89 | 25.4 | 75 | 250 |
| DFP 641-415 | 10.54 | 16.28 | 25.4 | 70 | 250 |
| DFP 562-468 | 11.89 | 14.27 | 25.4 | 75 | 250 |
| DFP 551-472 | 11.99 | 14 | 25.4 | 75 | 250 |
| DFP 630-551 | 14 | 16 | 25.4 | 75 | 250 |
| DFP 625-562 | 14.27 | 15.88 | 25.4 | 75 | 250 |
| DFP 718-625 | 15.88 | 18.24 | 25.4 | 75 | 250 |
| DFP 709-630 | 16 | 18.01 | 25.4 | 75 | 250 |
| DFP 868-641 | 16.28 | 22.05 | 25.4 | 70 | 250 |
| DFP 787-709 | 18.01 | 19.99 | 25.4 | 70 | 250 |
| DFP 750-718 | 18.24 | 19.05 | 25.4 | 70 | 250 |
| DFP 875-750 | 19.05 | 22.23 | 25.4 | 70 | 250 |
| DFP 886-787 | 19.99 | 22.5 | 25.4 | 70 | 250 |
| DFP 1094-868 | 22.05 | 27.79 | 25.4 | 70 | 100 |
| DFP 945-886 | 22.5 | 24 | 25.4 | 70 | 100 |
| DFP 1024-945 | 24 | 26.01 | 25.4 | 65 | 100 |
| DFP 1125-1000 | 25.4 | 28.58 | 25.4 | 65 | 100 |
| DFP 1102-1024 | 27.79 | 33.53 | 25.4 | 65 | 100 |
| DFP 1250-1125 | 28.58 | 31.75 | 25.4 | 65 | 100 |
| DFP 1547-1320 | 33.53 | 39.29 | 25.4 | 70 | 100 |
| DFP 1774-1547 | 39.29 | 45.06 | 25.4 | 70 | 100 |
| DFP 2000-1774 | 45.06 | 50.8 | 25.4 | 70 | 100 |
